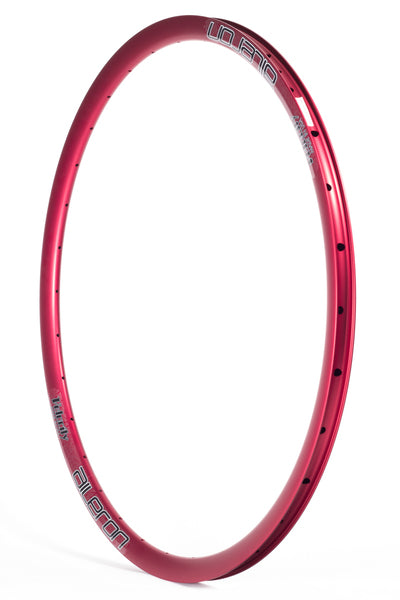

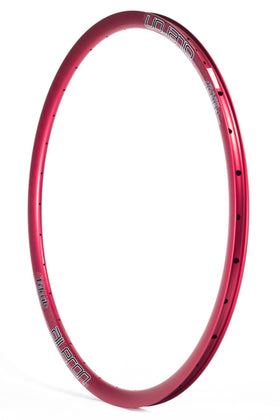

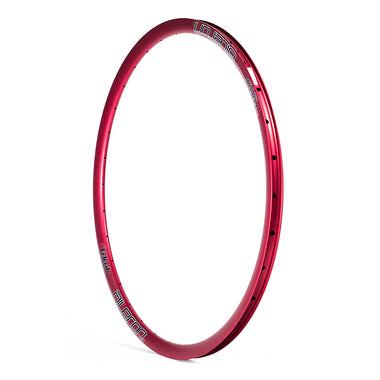

Velocity Aileron Rim, 700c 32h, Red

Aileron 700c Features a disc specific elliptical profile designed with aerodynamics and weight as key factors. Specifically tuned to be aerodynamically paired with 23-28c road tires, though a 20mm inner width compliments even the most voluminous gravel and ‘cross tires.

Tight tolerances require the use of a low profile rim tape like Velotape to avoid tire installation issues. Veloplugs are not recommended on Aileron rims.

SPECIFICATIONS:

• Rim Size: 700c
• Width: 25 mm
• Height: 28 mm
• Optimal Tire Width: 25 mm - 47 mm
• Tire Interface: Clincher / Tubeless
• Valve: Presta 41 - 55 mm
• Bead Seat Diameter (BSD): 622
• Effective Rim Diameter (ERD): 584
• Weight: 465 g
