Toseek Bicycle Handlebar TKR02

Enhance your road bike cockpit with the TOSEEK TKR02 Integrated Carbon Road Bike Handlebar. Designed with a sleek, integrated handlebar and stem profile, it creates a streamlined appearance for performance-focused road cycling. Its carbon fiber construction helps keep the setup lightweight, while the ergonomic shape provides a comfortable position for road riding. The TKR02 offers multiple handlebar widths and stem length options, allowing riders to choose a configuration that suits their bicycle and preferred riding position. With a 31.8mm handlebar clamp diameter and a 28.6mm fork steerer compatibility specification, it is designed for compatible road bike setups. The black and gray finish adds a clean, modern look. Always check your frame, stem, brake lever, and cable compatibility before installation.

Key Features

• Brand: TOSEEK

• Model: TKR02

• Material: Carbon fiber

• Handlebar Type: Integrated road bike handlebar and stem

• Handlebar Width Options: 360mm, 380mm, 400mm and 420mm for W1; 380mm, 400mm, 420mm and 440mm for W2

• Stem Length Options: 80mm, 90mm, 100mm, 110mm and 120mm

• Weight: 385 ±20g

• Drop: 127mm

• Reach: 77mm

• Stem Angle: -10°

• Handlebar Clamp Diameter: 31.8mm

• Fork Steerer Diameter: 28.6mm

• Finish: Black and gray

• Cable Routing: Integrated-style cockpit design

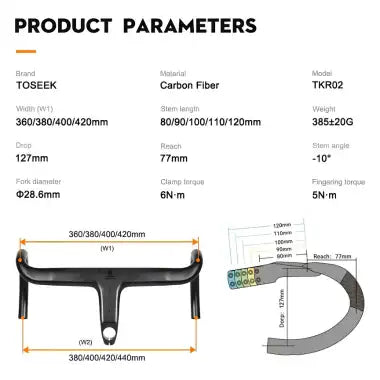

Product Specifications

• Brand: TOSEEK

• Model: TKR02

• Product Type: Integrated carbon road bike handlebar

• Material: Carbon fiber

• Handlebar Width W1: 360mm, 380mm, 400mm, 420mm

• Handlebar Width W2: 380mm, 400mm, 420mm, 440mm

• Stem Length: 80mm, 90mm, 100mm, 110mm, 120mm

• Weight: 385 ±20g

• Drop: 127mm

• Reach: 77mm

• Stem Angle: -10°

• Handlebar Clamp Diameter: 31.8mm

• Fork Steerer Diameter: 28.6mm

• Clamp Torque: 6N·m, as shown in the product image

• Control Lever Torque: 5N·m, as shown in the product image

• Finish: Black and gray

• Intended Use: Road cycling

• Compatibility: For bicycles and components matching the listed dimensions

Integrated Cockpit Design

• Streamlined Profile: The integrated handlebar and stem create a unified cockpit appearance.

• Riding Position: The 77mm reach and 127mm drop provide defined measurements to help riders assess fit and hand positioning.

• Size Selection: Multiple width and stem length options allow riders to select a configuration suited to their bike fit.

• Setup Consideration: Check the routing path and compatibility of your brake and shift cables before fitting the handlebar.

Easy Operation / Usage

• Confirm Fit: Check the handlebar width, stem length, 31.8mm clamp diameter and 28.6mm steerer compatibility before purchase and installation.

• Install Carefully: Follow the bicycle and component manufacturers’ installation instructions and torque recommendations.

• Check Controls: Ensure brake levers, shifters and cables are compatible with the handlebar’s shape and routing.

• Inspect Before Riding: Verify that the handlebar and all attached components are securely installed and functioning correctly.

Why Choose This Product

• Carbon Fiber Construction: Provides a lightweight option for a performance-oriented road bike cockpit.

• Integrated Appearance: Combines the handlebar and stem into a coordinated design.

• Multiple Fit Options: Offers a selection of widths and stem lengths for different setups.

• Road-Focused Geometry: Defined reach and drop dimensions help riders evaluate their preferred riding position.

• Modern Finish: The black and gray styling complements a range of road bike designs.

In the Box

• 1 × TOSEEK TKR02 Integrated Carbon Road Bike Handlebar
