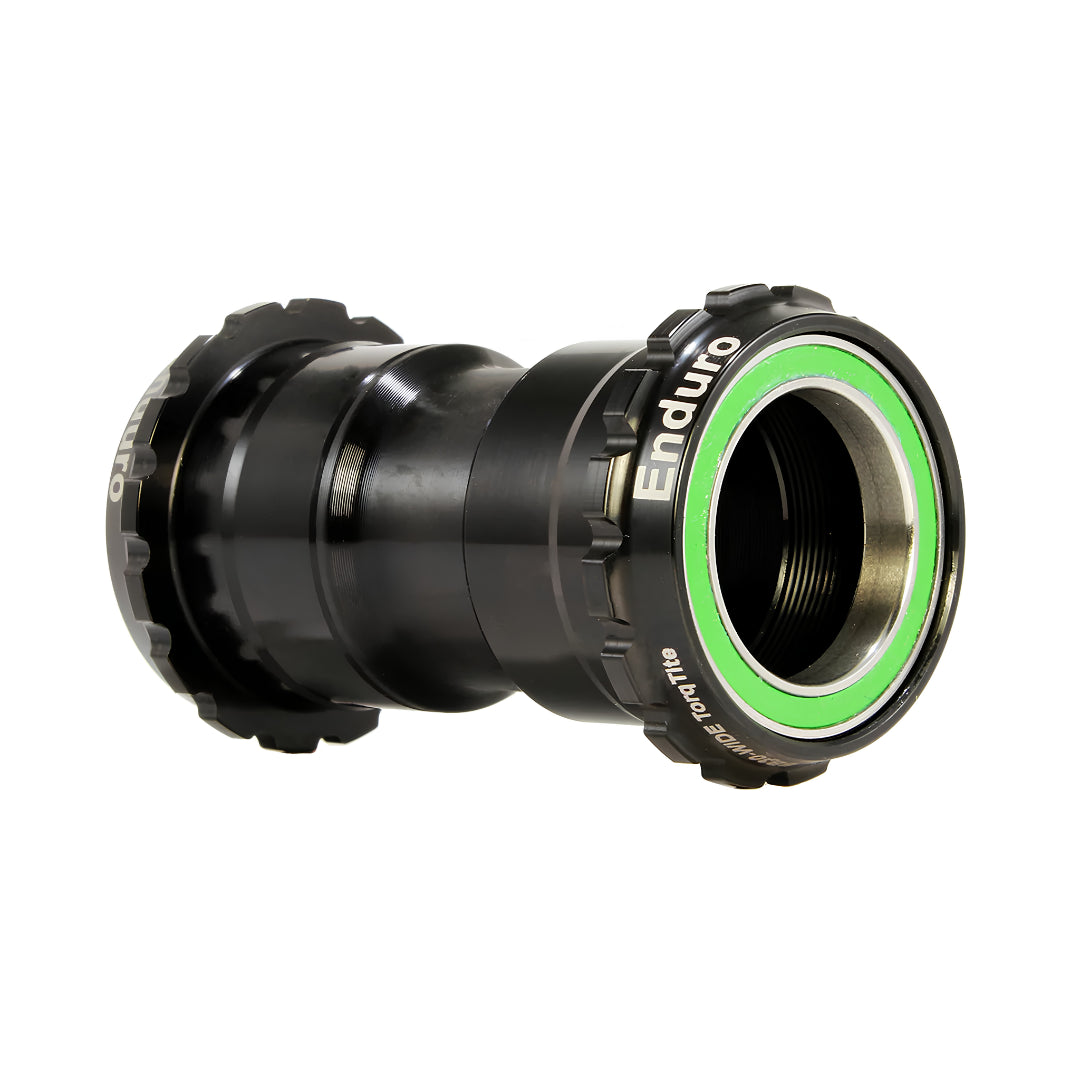

TorqTite Ceramic-Hybrid XD15 Angular Contact Bottom Bracket for PF30 & Shimano 24mm – Black

The TorqTite Ceramic-Hybrid XD15 Angular Contact Bottom Bracket for PF30 frames and Shimano 24mm cranksets is built for riders who want exceptional performance, long-term durability, and a smoother riding experience. Designed by Enduro Bearings, this premium bottom bracket uses exclusive XD-15 Pro angular contact cartridge bearings housed in precision-machined aluminum cups that thread directly into the bottom bracket shell for improved frame stability and reduced movement. The system combines cryogenically treated corrosion-resistant nitrogen steel races with oversized Grade 3 Silicon Nitride ceramic balls for low friction and superior efficiency. Unlike standard ceramic bearings that gradually lose performance, XD-15 bearings continue improving as they wear in, delivering smoother rotation and increased speed over time. Built in California to high manufacturing standards, this bottom bracket is engineered for riders who demand dependable performance in every ride.

Key Features

• Type: TorqTite thread-together bottom bracket system

• Compatibility: PF30 framesets with Shimano 24mm cranksets

• Bearing Type: XD-15 Ceramic-Hybrid Angular Contact bearings

• Bearing Design: 15-degree angular contact cartridge bearings

• Ball Material: Grade 3 Silicon Nitride ceramic balls

• Cup Material: Precision-machined aluminum cups

• Performance Benefit: Reduced friction and smoother power transfer

• Wear Resistance: Lifetime protection against wear and corrosion

• Construction: Thread-together design for increased stability and reduced creaks

• Made In: California, USA

Product Specifications

• Model Number: BKC-0871

• Product Type: Bottom Bracket

• Color: Black

• Frame Standard: PF30

• Crank Compatibility: Shimano 24mm spindle cranksets

• Bearing Material: XD-15 nitrogen steel races with ceramic balls

• Bearing Angle: 15° Angular Contact

• Bearing Feature: Deep-groove raceways

• Bearing Technology: Ceramic-Hybrid

• Warranty: Full lifetime warranty against wear and corrosion

Bearing Performance Technology

The XD-15 bearing technology is designed to deliver long-term speed and smoothness rather than only short-term gains.

• Wear-In Technology: Bearings become smoother with regular use

• Larger Contact Area: Deep raceways allow larger ceramic balls for improved load handling

• Corrosion Resistance: Nitrogen steel races resist harsh riding conditions

• Improved Efficiency: Reduced drag for better pedaling performance

• Enhanced Longevity: Designed for long-lasting reliability under demanding conditions

Easy Operation / Usage

• Install into compatible PF30 framesets

• Use with Shimano 24mm crank spindle systems

• Thread cups together for secure shell fitment

• Tighten according to manufacturer torque specifications

• Ride normally and allow bearings to naturally optimize over time

Why Choose This Product

• Built with exclusive Enduro XD-15 technology

• Provides exceptional smoothness and efficiency

• Reduces common press-fit movement and creaking issues

• Improves performance over time instead of declining

• Uses premium ceramic-hybrid materials for durability

• Backed by a lifetime warranty against wear and corrosion

• Trusted and highly praised by professional reviewers and performance cyclists

In the Box

• TorqTite Ceramic-Hybrid XD15 Bottom Bracket
