Toopre TP-63 Bicycle Internal Cable Routing Tool

The TOOPRE TP-63 Bicycle Internal Cable Routing Tool is designed to make internal cable, brake hose, and electronic wire installation easier on modern bicycles. Its magnetic guidance system helps guide the routing cable through the frame, reducing the difficulty of working around bends and enclosed frame sections. The kit includes a main magnetic guide, routing cable, quick traction sleeve, and multiple connectors for different cable and hose applications. It is suitable for carbon fiber, titanium alloy, and aluminum alloy bicycle frames with internal routing holes of at least 6mm. The traction cable is designed to help reduce the risk of scratching the frame during routing. With its compact storage box and lightweight 58g standard version, the TOOPRE TP-63 is convenient for both professional bicycle workshops and home mechanics.

Key Features

• Product Type: Bicycle internal cable routing tool kit

• Model: TP-63

• Routing System: Magnetic cable guidance system

• Material: Aluminum alloy, magnet and stainless steel

• Frame Compatibility: Carbon fiber, titanium alloy and aluminum alloy frames

• Minimum Frame Hole Diameter: 6mm

• Cable Compatibility: Shift cables, brake cables, brake hoses and electronic wires

• Guide Cable: Magnetic traction cable with protective outer coating

• Quick Traction Sleeve: Designed for compatible 5mm cable housing and brake hose applications

• Colour: Blue

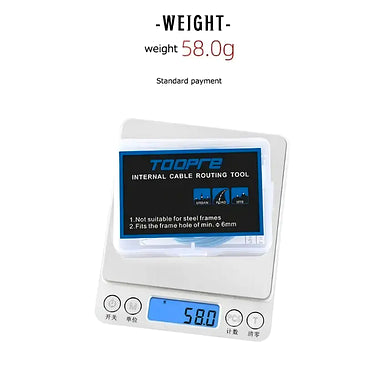

• Standard Version Weight: Approximately 58g

Product Specifications

• Brand: TOOPRE

• Product Name: Internal Cable Routing Tool

• Model: TP-63

• Material Construction: Aluminum alloy + magnet + stainless steel

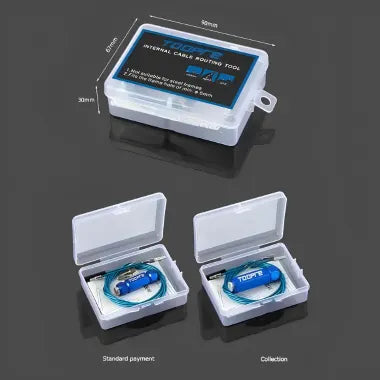

• Package Size: Approximately 90 × 67 × 30mm

• Weight: Approximately 58g for the standard version

• Applicable Frames: Carbon fiber, titanium alloy and aluminum alloy

• Minimum Routing Hole: 6mm internal diameter

• Frame Restriction: Not suitable for steel frames

• Storage: Compact transparent storage case

Magnetic Cable Routing System

The TOOPRE TP-63 uses magnetic guidance to help move the routing cable through internal frame passages. The main magnet can guide the traction cable from outside the frame, making it easier to reach the required exit point. Multiple connectors allow the tool to be adapted for different cable, hose and electronic wire applications. The protective coating on the traction cable also helps reduce the chance of damaging the bicycle's finish during routing.

Easy Operation / Usage

• Prepare the Frame: Make sure the internal routing openings are clean and have a minimum 6mm diameter.

• Insert the Guide: Feed the magnetic routing cable through the appropriate frame opening.

• Guide the Cable: Move the external magnetic guide along the frame to direct the internal cable toward the required exit point.

• Attach the Connector: Select the appropriate connector for the shift cable, brake cable, hose or electronic wire.

• Pull Through: Carefully pull the guide cable until the required cable or hose reaches the exit opening.

• Complete Installation: Remove the connector and finish the cable or hose installation according to the bicycle manufacturer's requirements.

Why Choose This Product

• Easy Routing: Magnetic Guidance: Helps simplify internal cable installation through difficult frame passages.

• Multiple Applications: Multi-Connector Design: Supports different cable, hose and electronic wire routing requirements.

• Frame Friendly: Protective Traction Cable: Helps reduce the possibility of scratches during cable routing.

• Wide Compatibility: Frame Support: Suitable for compatible carbon, titanium and aluminum bicycle frames.

• Portable Design: Compact Storage: The included case keeps the routing tool and small connectors together for easy storage.

• Workshop Utility: Professional Tool: Useful for bicycle mechanics, repair shops and home maintenance.

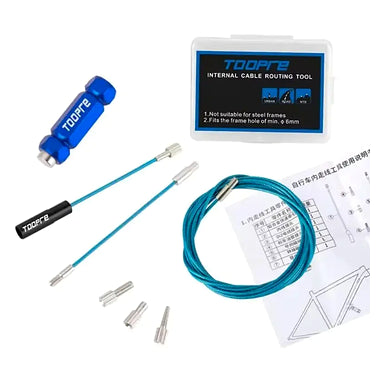

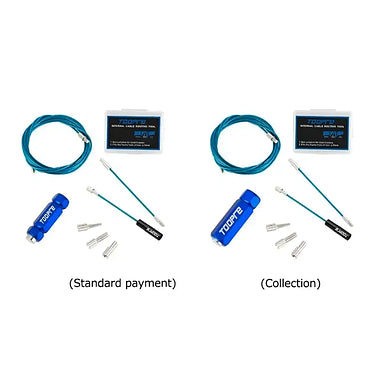

In the Box

• 1 x Main magnetic guide

• 1 x Magnetic routing cable

• 1 x Aluminum alloy quick traction sleeve

• Cable connector set

• Di2 wire connector

• Hydraulic hose connector

• SD300 wire connector

• 1 x Storage case

• 1 x Instruction manual
