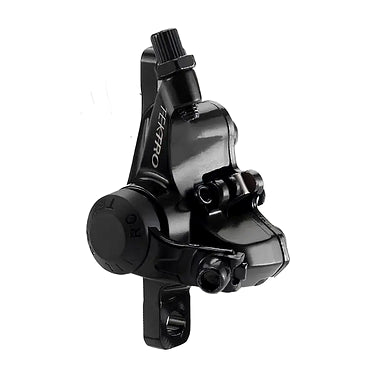

Tektro Caliper Md-M280

The Tektro MD-M280 is a cable-actuated mechanical disc brake caliper designed for compatible mountain bike and mechanical disc brake systems. It uses a two-piece aluminum and steel body for a practical balance of durability and weight, while the automatic caliper centering system helps simplify alignment during installation and adjustment. The caliper also features pad adjustment and an automatic pad-angle adjustment system using floating plates, helping maintain consistent contact with the brake rotor. Its low-noise resin brake pads are designed for quieter braking and easy replacement. Finished in black, the MD-M280 is suitable for bicycles using a compatible post-mount mechanical disc brake setup and a linear-pull brake lever. The caliper weighs approximately 200g per wheel, excluding the rotor, adapter and mounting bolts.

Key Features

• Model: MD-M280

• Brake Type: Cable-actuated mechanical disc brake

• Actuation: Linear-pull brake lever compatible

• Caliper Body: Two-piece aluminum and steel construction

• Centering System: Automatic Caliper Centering (A.C.C.)

• Pad Adjustment: Adjustable brake pad positioning

• Pad Angle Adjustment: Automatic adjustment through floating plates

• Brake Pads: Low-noise resin pads

• Finish: Black

• Application: MTB and compatible mechanical disc brake bicycles

• Mounting Type: Post mount

Product Specifications

• Brand: Tektro

• Product Name: MD-M280 Mechanical Disc Brake Caliper

• Model: MD-M280

• Product Type: Mechanical Disc Brake Caliper

• Brake System: Cable-actuated mechanical disc

• Caliper Material: Aluminum and steel

• Caliper Construction: Two-piece body

• Actuation Type: Linear pull

• Mount Type: Post mount

• Brake Pad Type: Low-noise resin

• Disc Thickness: 1.8mm

• Weight: Approximately 200g per wheel

• Finish: Black

• Rotor Included: No

• Adapter Included: No

• Mounting Bolts Included: Not specified

• Compatible Pad: Tektro E10.11 resin pad

Braking Performance & Pad Adjustment

• Caliper Centering: Automatic Caliper Centering helps simplify alignment between the caliper and rotor.

• Pad Positioning: Adjustable pad positioning allows the braking system to be fine-tuned during setup.

• Floating Plate Design: Automatic pad-angle adjustment helps the pads align with the rotor during braking.

• Brake Pad Material: Low-noise resin pads provide controlled braking with reduced operating noise.

• Maintenance: The pad design allows straightforward replacement when the pads become worn.

Easy Operation / Usage

• Mount the caliper to a compatible post-mount brake position.

• Install the appropriate brake rotor and ensure it is correctly secured.

• Route and connect the compatible brake cable through the caliper.

• Adjust the caliper and brake pads so they align correctly with the rotor.

• Check brake lever movement and pad clearance before riding.

• Test the braking system at low speed after installation.

Why Choose This Product

• Reliable Construction: Two-piece aluminum and steel construction is designed for regular cycling use.

• Automatic Centering: A.C.C. helps simplify caliper alignment during installation and adjustment.

• Low-Noise Braking: Resin pads are designed for quieter braking operation.

• Adjustable Pads: Pad adjustment allows the braking system to be fine-tuned for proper clearance.

• Easy Maintenance: Compatible resin pads are designed for straightforward replacement.

• MTB Application: Suitable for compatible mountain bikes and other bicycles using mechanical disc brakes.

• Practical Replacement: A useful option for replacing a compatible mechanical disc brake caliper.

In the Box

1 × Tektro MD-M280 Mechanical Disc Brake Caliper
