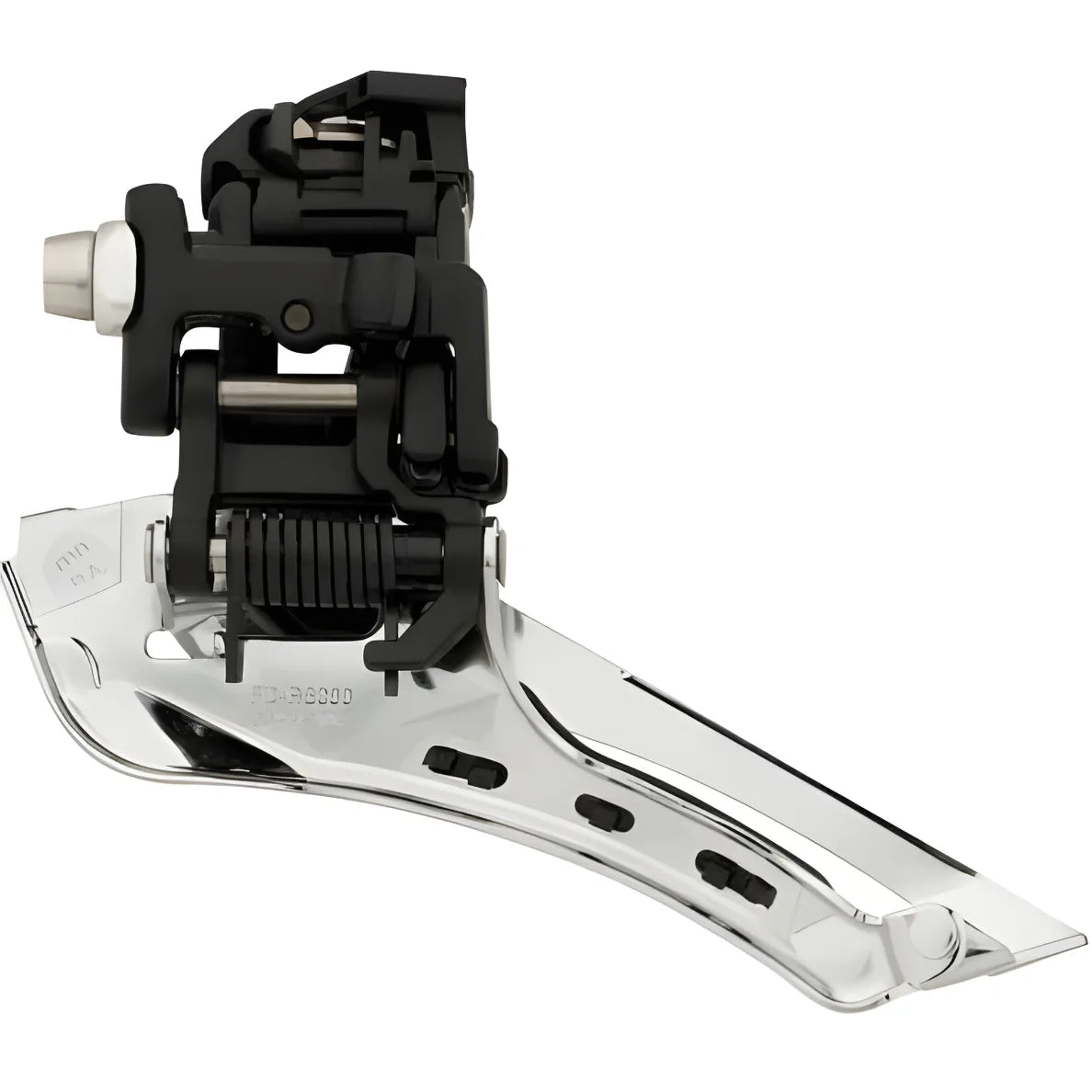

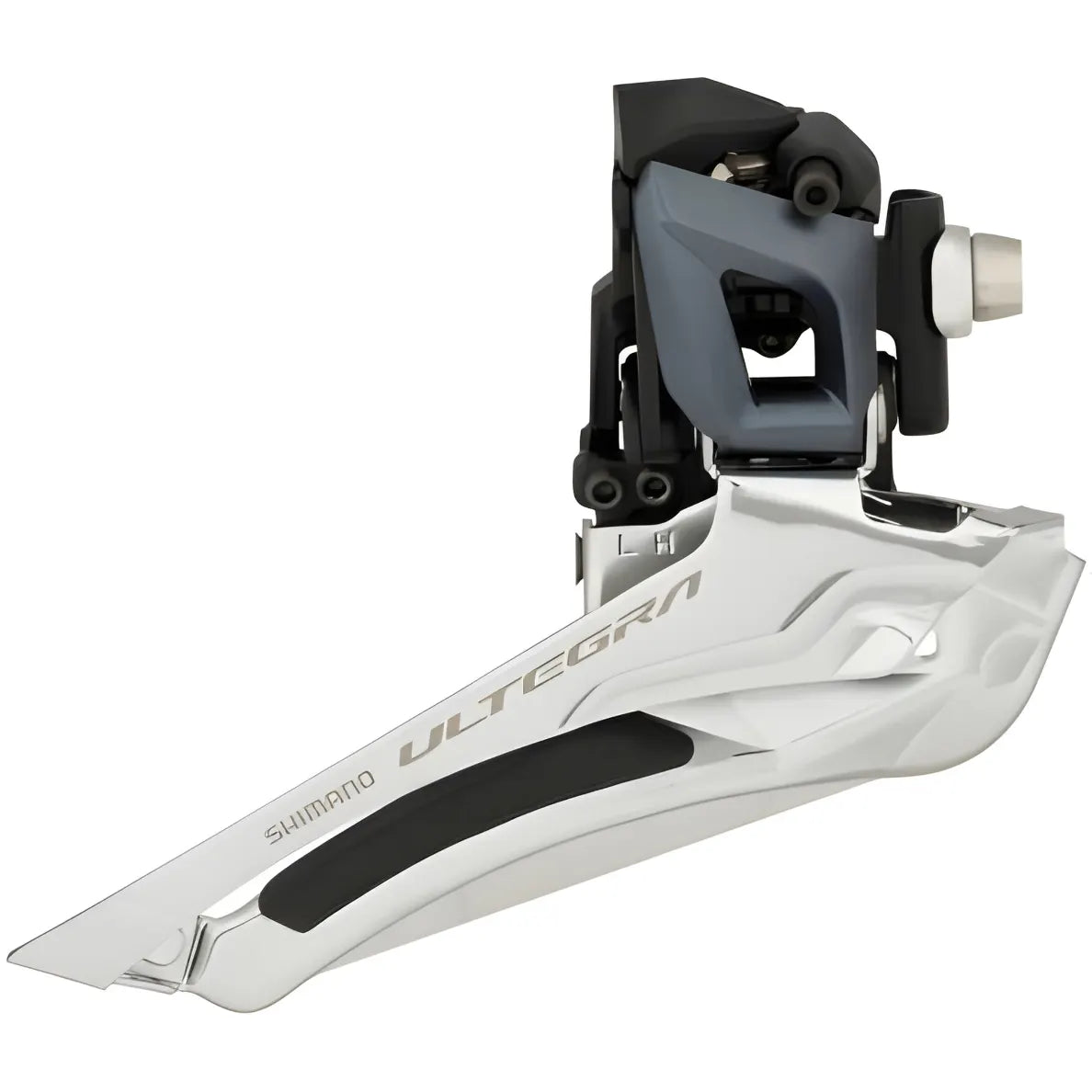

Shimano Ultegra Front Derailleur FD-R8000 2x11 Speed (Brazed-On Type)

Shimano ULTEGRA FD-R8000 2x11-speed Front Derailleur Braze On
The new Ultegra R8000 series is taking our rider-tuned philosophy to the next level, with an extensive range of components for mechanical shifting, electronic shifting (Di2) and time trial / triathlon.

With the Shimano Ultegra FD-R8000 front derailleur, you can perform absolutely smooth, reliable shifting operations on a Road bike with mechanical 2x11-speed drivetrains, and all that without much effort. Its design takes the natural performance curve of the hand into account. Thanks to an integrated tensioner, set-up and tension adjustment have never been easier. The Ultegra front derailleur is madea of plastic, aluminium and steel and is equally suitable for both rim brake and disc frames.

Key Features

• Series: Shimano Ultegra R8000

• Speed Compatibility: 2x11-speed drivetrain

• Mount Type: Braze-On mounting design

• Shifting Performance: Smooth and reliable front shifting

• Cable Routing: Down-pull cable routing system

• Integrated Tensioner: Built-in cable tension adjustment for easy setup

• Compatibility: Works with HG-EV 11-speed and HG-X 11-speed chains

• Versatility: Compatible with both rim brake and disc brake road frames

• Design Efficiency: Optimized lever force for easier shifting

Product Specifications

• Use: Road cycling

• Group: Shimano Ultegra

• Model: FD-R8000-F

• Mounting: Braze-On

• Cable Route Type: Down-Pull

• Front Gears: 2-speed

• Rear Gears: 11-speed

• Top Gear Teeth: 46–53T

• Total Capacity: 16T

• Compatible Chain: HG-EV 11-speed / HG-X 11-speed

• Chain Stay Angle: 61–66°

• Chain Line: 43.5 mm

Shifting Performance & Design

The Ultegra FD-R8000 front derailleur is designed to deliver highly responsive front shifting while maintaining efficiency across the drivetrain. Shimano redesigned the linkage structure to reduce shifting effort at the lever, allowing riders to change gears with less hand force. The wider link design also increases stability, ensuring precise movement of the chain between chainrings. Its integrated cable tension adjustment system eliminates the need for inline barrel adjusters, making installation cleaner and easier. This thoughtful engineering helps maintain consistent shifting performance even under load during climbs or high-speed riding.

Easy Operation / Usage

• Step 1: Install the derailleur onto the frame using the braze-on mount.

• Step 2: Route the shift cable through the down-pull cable path.

• Step 3: Use the integrated tension adjustment to fine-tune cable tension.

• Step 4: Align the derailleur cage with the chainrings for precise shifting.

• Step 5: Test gear changes to ensure smooth transitions between chainrings.

Why Choose This Product

• Precision Engineering: Developed as part of Shimano’s high-performance Ultegra groupset

• Smooth Shifting: Optimized linkage design ensures fast and reliable gear changes

• Easy Setup: Integrated cable tensioner simplifies installation and adjustments

• Durable Construction: Combination of aluminium, steel, and reinforced materials

• Road Performance: Ideal for endurance rides, training, and competitive cycling

In the Box

• Shimano Ultegra FD-R8000 Front Derailleur (Braze-On Type)
