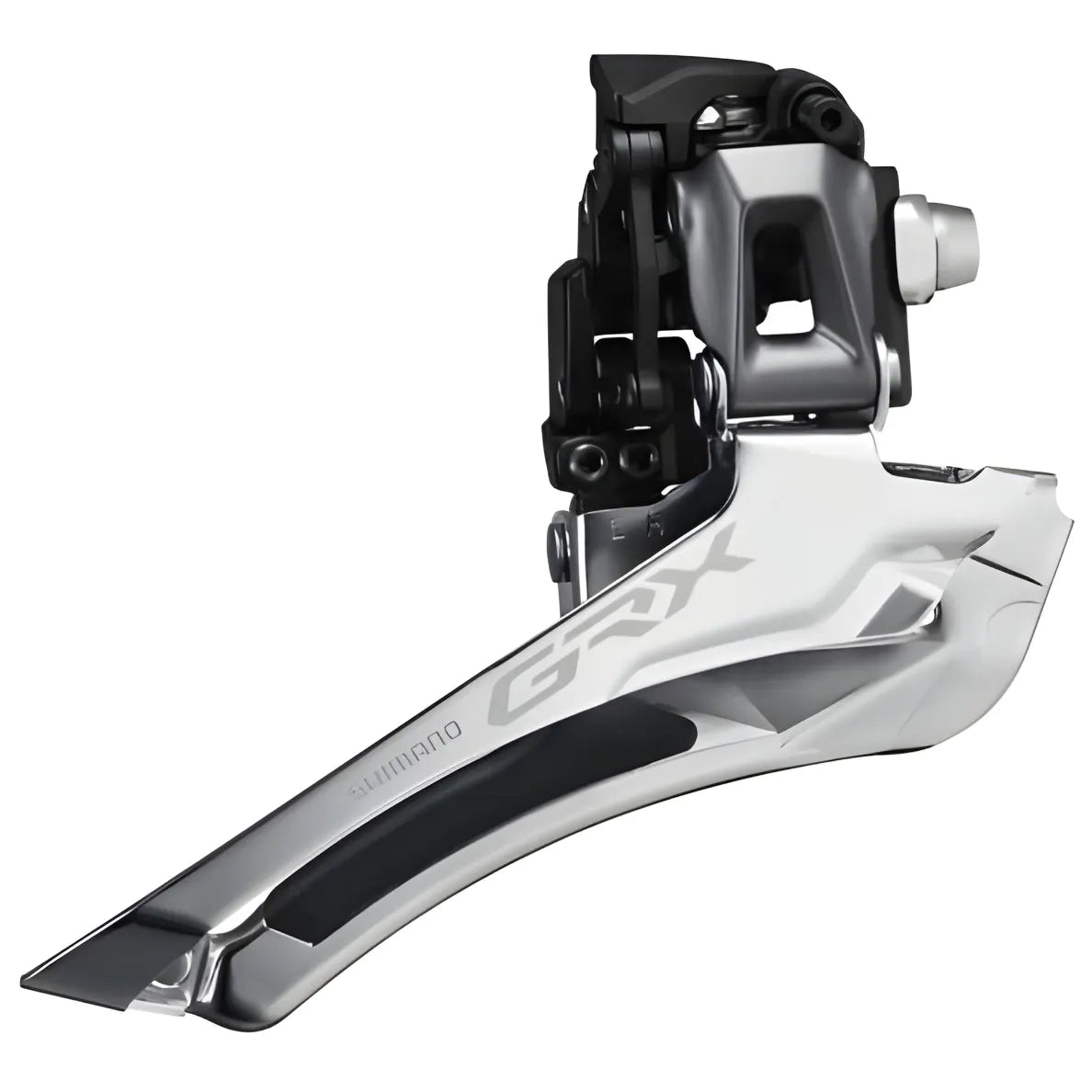

Shimano GRX Front Derailleur FD-RX810 2x11-Speed (Brazed-On Type)

SHIMANO GRX - Front Derailleur - Gravel - 2x11-speed
Matching the Shimano GRX cranksets, the GRX FD-RX810 2 x 11-speed front derailleur is also designed for a 2.5 mm wider chain line and thus allow tyre widths of up to 42 mm for rough terrain.

For gravel, road and cyclocross use: Shimano GRX 2x11-speed Front Derailleur RD-RX810 Braze On

The RX800 front derailleurs are designed to handle the 17-tooth chainring difference of the RX800 48/31T crank, while the FD-RX400 front derailleur harmonizes perfectly with the 16-tooth difference of the RX600 crank for 10-speed with 46/30 teeth. All front derailleurs naturally offer the typical SHIMANO shifting performance and precision. The Di2 front derailleur can be easily and intuitively adjusted using the integrated control functions. The mechanical front derailleurs impress with their smooth-running function with a very ergonomic power curve and the integration of tension clamp and adjustment function.

SHIMANO's GRX, the first Gravel-specific component family designed for both fast progress and safe bike handling on loose surfaces, is the result of an intensive and extensive research, testing and development process that incorporates information and feedback from countless riders on trails, forest tracks, gravel tracks and asphalt all over the world.

Key Features

• Speed Compatibility: 2x11-Speed drivetrain

• Mount Type: Brazed-On front derailleur design

• Optimized Chainline: +2.5 mm wider than standard road front derailleurs

• Tire Clearance: Compatible with gravel tires up to 42 mm

• Shifting Performance: Smooth and precise Shimano mechanical shifting

• Cable Adjustment: Integrated cable tension adjustment system

• Power Curve: Ergonomic shifting power curve for better control

• Gear Range: Supports wider front gearing for gravel riding

• Cable Routing: Multiple routing options for flexible installation

• Adjustment: Easy and precise front derailleur tuning

Product Specifications

• Brand: Shimano

• Series: GRX

• Model: FD-RX810-F

• Component Type: Front Derailleur

• Mounting Type: Brazed-On

• Use: Gravel, Road, Cyclocross

• Front Gears: 2-Speed

• Rear Compatibility: 11-Speed

• Top Gear Teeth: 46–48T

• Total Capacity: 17T

• Compatible Chain: HG-EV 11-Speed, HG-X11

• Chain Stay Angle: 61–66°

• Chainline: 46 mm

• Cable Route Type: Down-Pull

• Weight: 96 g

Gravel-Specific Design

• Purpose Built: Designed specifically for gravel riding conditions

• Wider Chainline: Allows more tire clearance for modern gravel bikes

• Improved Stability: Maintains reliable shifting even on rough terrain

• Better Control: Supports wider front gear ranges for varied terrain

• Rider Feedback Driven: Developed using extensive testing and feedback from gravel riders worldwide

Easy Operation / Usage

• Smooth Shifting: Ergonomic power curve makes shifting effortless

• Precise Adjustment: Integrated cable tension adjustment simplifies setup

• Consistent Performance: Maintains accurate shifting even during long rides

• Flexible Setup: Multiple cable routing options help optimize bike configuration

Why Choose This Product

• Designed specifically for gravel bike drivetrains

• Reliable Shimano shifting precision and durability

• Wider tire compatibility for modern gravel bikes

• Lightweight construction for improved bike performance

• Easy installation and adjustment for mechanics and riders

• Optimized for GRX cranksets and gravel gearing systems

In the Box

• Shimano GRX FD-RX810 Front Derailleur (Brazed-On Type)
