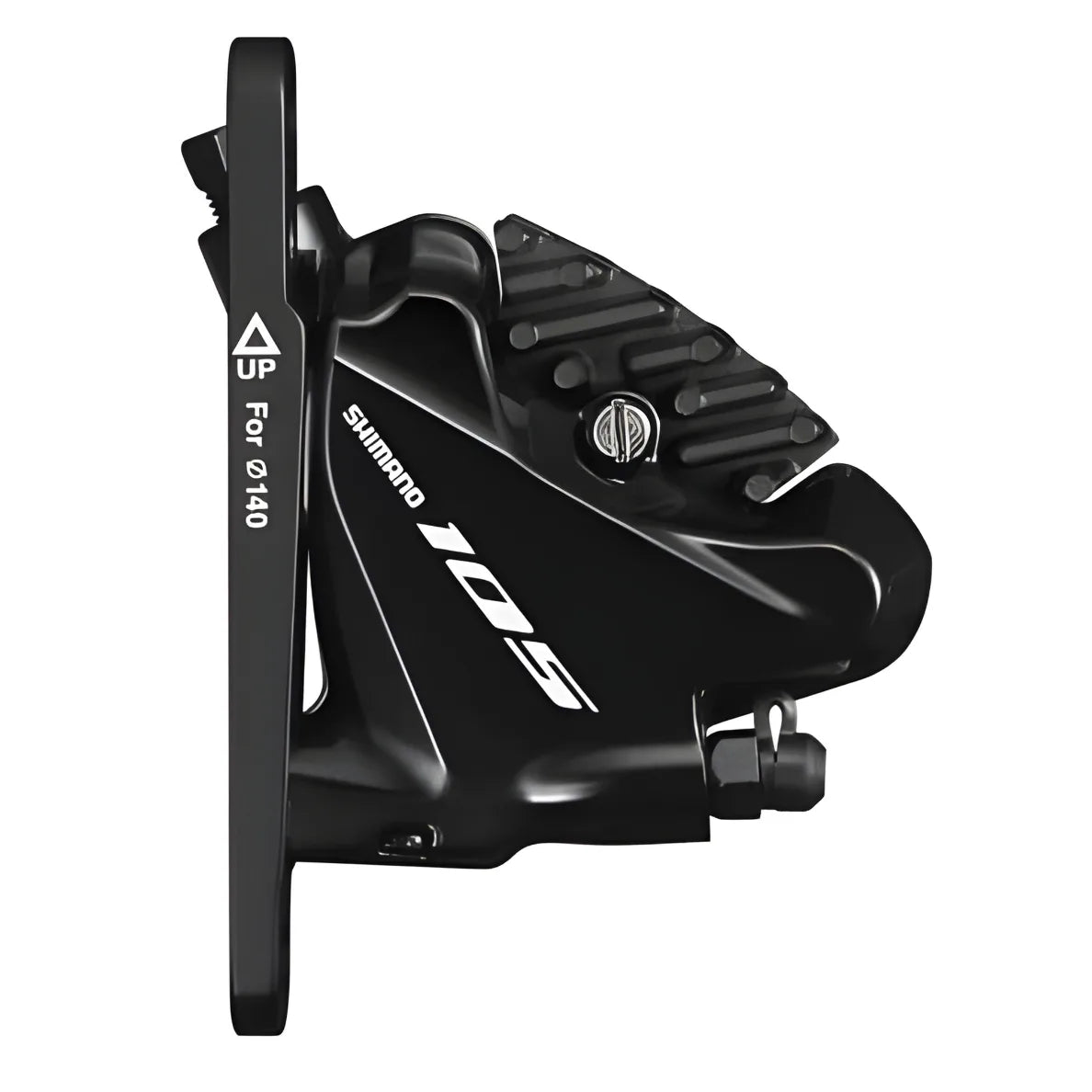

Shimano BR-R7070 105 Hydraulic Disc Brake Caliper-Front

Shimano 105 BR-R7070 Hydraulic Disc Brake Caliper

Utilizing the current technologies of the Dura Ace R9100 and Ultegra R8000 road components, the Shimano 105 R7000 groupset offers added versatility and improved performance for a wide range of cyclists. The shifters are ergonomically refined and match the sleek design of their Ultegra predecessors, while the mid-length rear derailleur and 11-34 cassette expand the gear ratio range. The highlight of the new 105 is the expansion of the standard range with hydraulic disc brakes, which have the usual good properties of disc-specific Shimano components. The flat calipers are compatible with Ice Technologies pads and brake discs from a diameter of 140 mm to offer the most powerful Shimano 105 group ever.

Shimano 105 BR-R7070 hydraulic flat mount caliper-Front

Using Shimano 's in-house lightweight yet slim flat mount design, the Shimano BR-R7070 hydraulic disc brake caliper offers premium stopping power and aerodynamics for road use. Combined with the SM-RT70 brake disc (sold separately), which features Ice Technologies construction, confident braking performance and excellent thermal control are guaranteed even on the longest descents.

Key Features

• Brake Type: Hydraulic disc brake caliper designed for road bikes

• Mount Standard: Flat mount design for modern road frames and forks

• Groupset Compatibility: Shimano 105 R7000 series

• Brake Pad Compatibility: Supports K02S resin and L02A resin Ice-Tech pads

• Optional Pad Types: Compatible with K04S metal and L04C metal pads

• Piston Material: Ceramic pistons for improved heat insulation

• Brake Fluid: Shimano mineral oil system

• Rotor Compatibility: Works with rotors from 140 mm diameter and above

• Construction: Lightweight painted aluminum caliper body

• Thermal Control: Optimized for use with Ice Technologies rotors

Product Specifications

• Model: Shimano BR-R7070

• Series: Shimano 105 R7000

• Position: Front brake caliper

• Brake Mount Type: Flat mount

• Caliper Material: Aluminum (painted finish)

• Piston Type: Ceramic piston

• Brake Fluid Type: Shimano mineral oil

• Recommended Brake Disc: SM-RT70 (sold separately)

• Rotor Size Compatibility: 140 mm and larger

• Recommended Brake Lever: ST-R7020, ST-R7025

• Recommended Brake Hose: SM-BH90-JK-SS, SM-BH90-J-SSR, SM-BH90-JK-SSR

• Brake Pad Options: K02S Resin, L02A Resin Ice-Tech

• Optional Pads: K04S Metal, L04C Metal with cooling fins

Braking Performance & Thermal Management

The Shimano BR-R7070 caliper is engineered for stable braking performance during both short and extended rides. Its ceramic pistons reduce heat transfer to the hydraulic system, helping maintain consistent braking feel. When combined with Ice Technologies brake rotors and pads, the system efficiently dissipates heat generated during braking. This improves control on steep descents and reduces brake fade. The hydraulic system also provides smoother modulation compared to mechanical brakes, allowing riders to apply the exact braking force needed for confident and predictable stopping.

Easy Operation / Usage

• Works seamlessly with Shimano hydraulic disc brake levers

• Simple flat mount installation on modern road frames and forks

• Compatible with Shimano mineral oil hydraulic systems

• Easy brake pad replacement for routine maintenance

• Designed for precise braking modulation and smooth lever feel

Why Choose This Product

• Shimano 105 performance with technology inspired by Ultegra and Dura-Ace

• Powerful and reliable hydraulic braking for road cycling

• Lightweight flat mount design for modern road bike frames

• Excellent heat management when paired with Ice Technologies rotors

• Durable aluminum construction with ceramic pistons for long-term reliability

• Ideal upgrade for riders seeking better braking control and safety

In the Box

• 1 brake caliper

• Brake pads included
