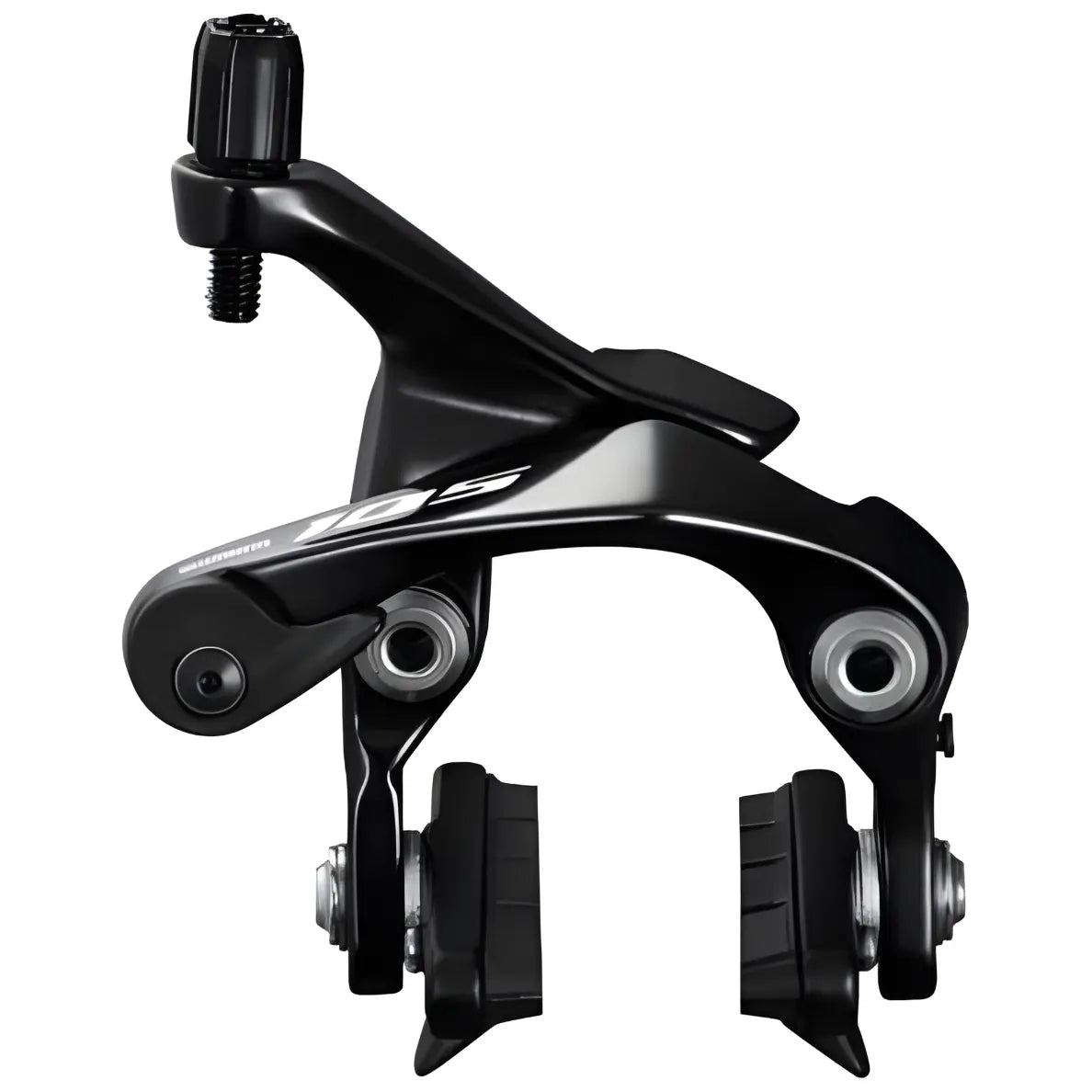

Shimano 105 Brake Caliper BR-R7010-Front Direct Mount Type

SHIMANO 105- Direct Mount - Front Brake Caliper - SLR-EV - Rim Brake

The new 105 R7000 components are not only visually oriented towards their big siblings Dura Ace R9100 and Ultegra R8000, but also from a technical point of view some features of the top groups have been adopted. With a variety of translation options and the choice between rim and disc brakes, it is just as suitable for everyday drivers as for racing use.

The BR-R7010 brake is characterized by its balance in terms of stiffness, weight and braking power. The brakes are connected to the frame with 2 screws on the brake arms via the direct mount brake mountings. This design reduces the number of moving parts on the brake. This makes the response more sensitive and the braking power increases. With a spread between the thighs to 51 millimeters, the brake is suitable for 28-millimeter-wide rims and 28C tires.

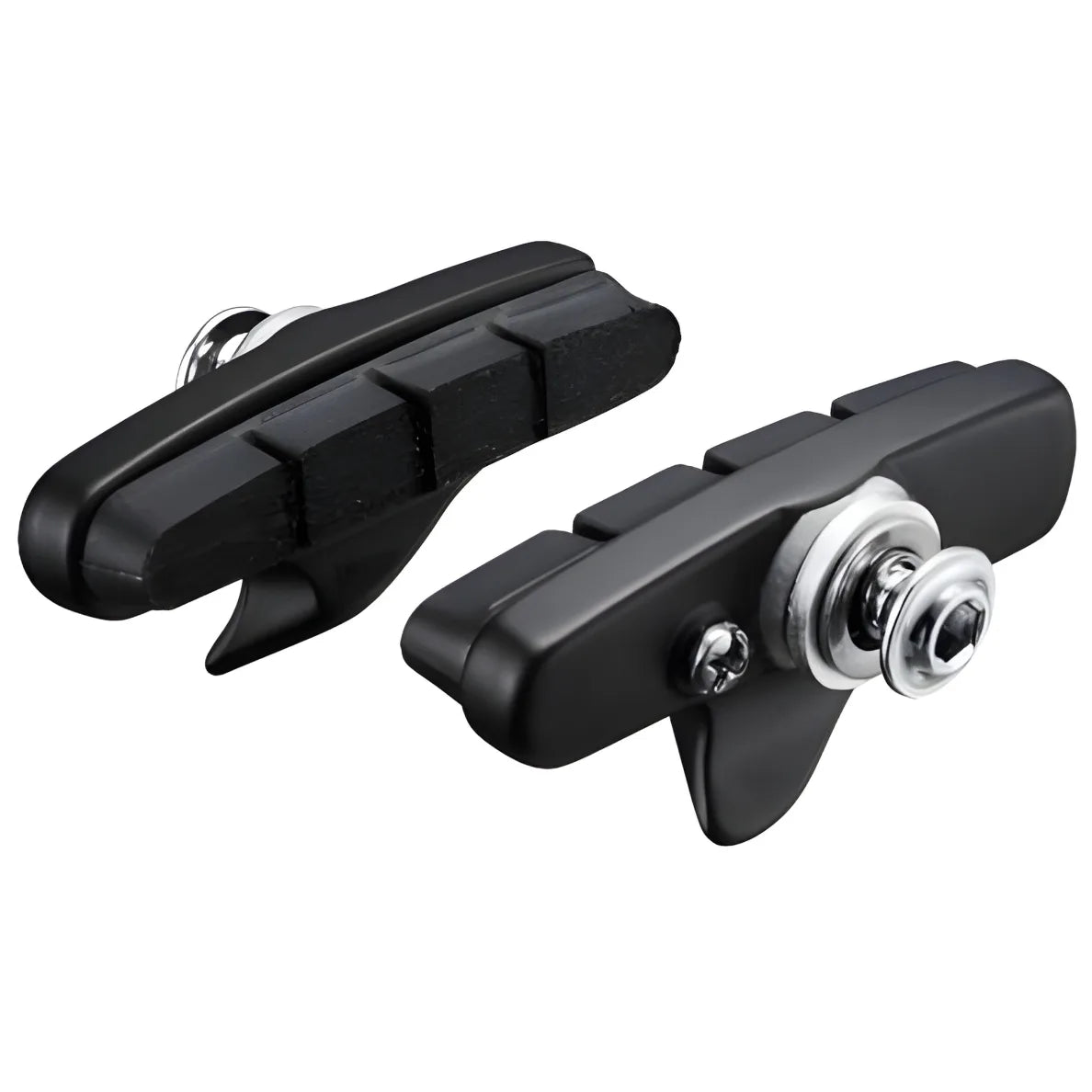

The brakes are equipped with R55C4 brake shoes with aluminum alloy padding.

Key Features

• Brake Type: Front direct mount rim brake caliper

• Technology: SLR-EV dual pivot braking system

• Design: Sleek and low-profile aerodynamic caliper

• Braking Control: Smooth, light, and responsive braking action

• Compatibility: Supports tires up to 28C width

• Rim Compatibility: Works with rims measuring 20.8–28 mm width

• Performance: Balanced stiffness, weight, and braking power

• Brake Pads: Shimano R55C4 brake shoes included

• Frame Mounting: Direct mount design with two mounting bolts

• Ride Comfort: Suitable for wider tires for rough road riding

Product Specifications

• Model: Shimano BR-R7010

• Series: Shimano 105 R7000

• Material: Aluminium: Lightweight and durable construction

• Technology: SLR-EV: Efficient braking system with improved leverage

• Brake Mechanism: Dual Pivot: Increased stopping power and stability

• Wheel Compatibility: Front Wheel: Designed specifically for front installation

• Brake Lever Compatibility: ST-R7000: Shimano 105 brake/shift lever series

• Leg Dimension: 51 mm: Clearance for wider rims and tires

• Maximum Tire Size: 28C: Supports modern road tire widths

• Rim Width Compatibility: 20.8–28 mm: Suitable for modern road rims

• Brake Shoes: Shimano R55C4: Designed for aluminium rims

• Color: Black: Clean and professional appearance

• Weight: 174 g: Manufacturer claimed weight

Brake Performance & Control

The Shimano BR-R7010 brake caliper is engineered to deliver consistent and confident braking performance. Its SLR-EV dual pivot mechanism increases braking efficiency while reducing the force needed at the lever. The direct mount design improves frame stiffness during braking, which leads to better modulation and improved rider confidence.

• Enhanced Power: Direct mount system increases braking stability

• Better Modulation: Dual pivot design improves braking control

• Reduced Flex: Two-bolt mounting minimizes caliper movement

• Improved Sensitivity: Fewer moving parts create quicker response

• Stable Braking: Reliable stopping power even at high speeds

Easy Operation / Usage

• Install the caliper on the frame using the direct mount two-bolt system

• Connect the brake cable from a compatible Shimano brake lever

• Align the R55C4 brake pads with the rim braking surface

• Adjust cable tension for optimal braking response

• Test braking performance before riding to ensure proper setup

Why Choose This Product

• Proven Shimano 105 performance and reliability

• Inspired by technologies from Dura-Ace and Ultegra groupsets

• Smooth and powerful braking for road cycling

• Direct mount design improves stiffness and control

• Compatible with wider modern road tires

• Lightweight aluminium construction for performance riding

• Ideal for both daily riders and competitive cyclists

In the Box

• Shimano 105 BR-R7010 Front Direct Mount Brake Caliper

• Shimano R55C4 Brake Shoes

• Mounting Hardware
