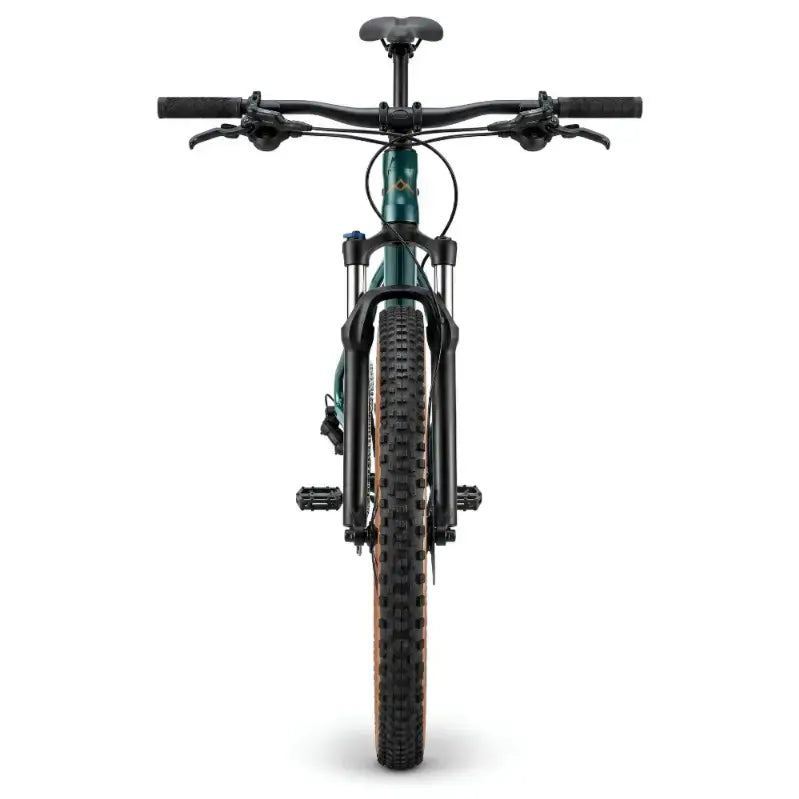

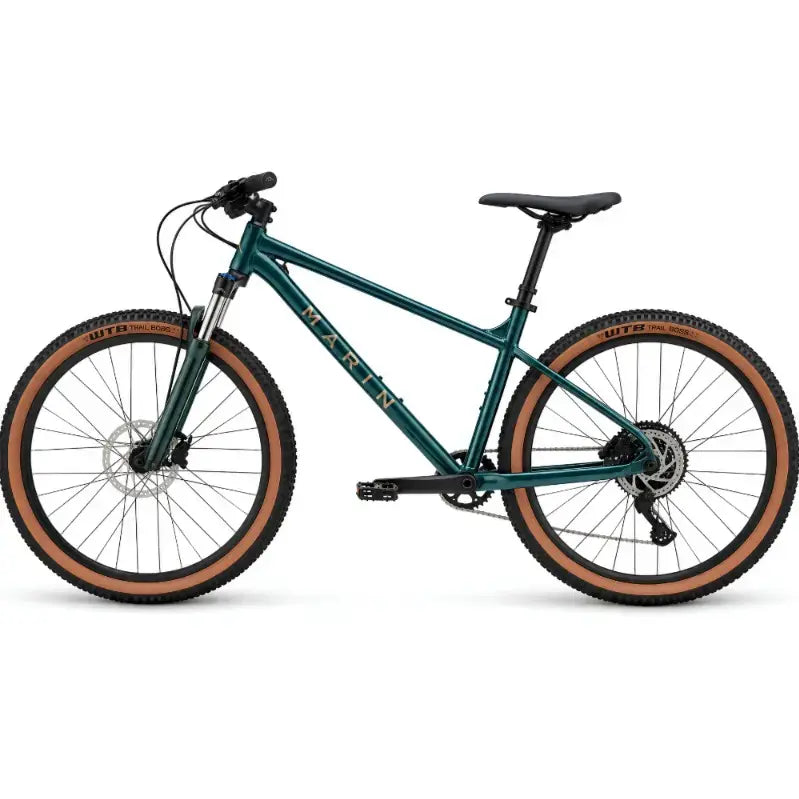

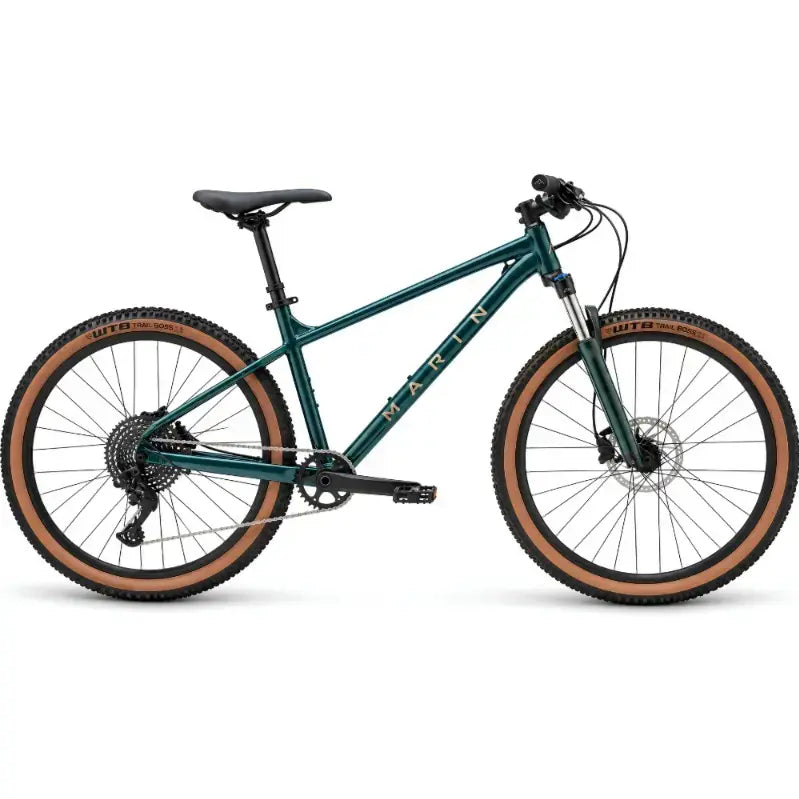

Marin Dsx 1

The Marin DSX 1 is a versatile flat-bar gravel bike designed for riders who want a comfortable, controlled setup for gravel roads, commuting, touring and mixed-surface adventures. It features a Series 3 6061 aluminum frame with a tapered head tube, internal cable routing and practical mounts for racks and mudguards. The full-carbon fork helps reduce front-end weight while providing a responsive ride and additional versatility for adventure setups. A Shimano CUES 10-speed drivetrain offers a wide 11-48T gear range for tackling climbs and varied terrain. WTB Riddler 700x45C tires provide a balance of traction and rolling efficiency, while Tektro hydraulic disc brakes with 160mm rotors deliver dependable stopping control. The DSX 1 also uses thru-axles and tubeless-compatible wheel options, making it a practical choice for everyday riding and longer off-road adventures.

Key Features

• Bike Type: Flat-bar gravel and adventure bicycle

• Frame: Series 3 6061 aluminum

• Fork: Full carbon fork with tapered steerer

• Drivetrain: Shimano CUES 1x10-speed

• Cassette: Shimano CUES 11-48T, 10-speed

• Crankset: Forged alloy with 42T steel narrow-wide chainring

• Tires: WTB Riddler 700x45C

• Brakes: Tektro HD-R285 hydraulic flat-mount disc brakes

• Brake Rotors: 160mm front and rear

• Wheel Size: 700C

• Cable Routing: Internal cable routing

• Mounting Options: Rack and mudguard mounts

• Axles: 100x12mm front and 142x12mm rear thru-axles

Product Specifications

• Product Type: Flat-bar gravel bike

• Model: DSX 1

• Frame Material: Series 3 6061 aluminum

• Frame Design: Tapered head tube with relieved bottom bracket

• Front Fork: Marin full carbon, tapered steerer

• Front Axle: 100x12mm thru-axle

• Rear Axle: 142x12mm thru-axle

• Wheel Size: 700C

• Rims: Marin aluminum double-wall, 21mm inner width

• Hubs: Forged aluminum, disc-specific

• Spokes: 14g black stainless steel

• Tires: WTB Riddler, 700x45C

• Rear Derailleur: Shimano CUES U6000GS with clutch

• Shifter: Shimano CUES 10-speed

• Crankset: Forged alloy, 42T steel narrow-wide chainring

• Bottom Bracket: External sealed cartridge bearings

• Chain: KMC LG

• Cassette: Shimano CUES CSLG300, 10-speed, 11-48T

• Front Brake: Tektro HD-R285 hydraulic flat-mount disc, 160mm rotor

• Rear Brake: Tektro HD-R285 hydraulic flat-mount disc, 160mm rotor

• Brake Levers: Tektro hydraulic

• Handlebar: Marin MiniRiser

• Stem: Marin 3D forged alloy

• Grips: Marin MTB

• Headset: FSA No.42 ACB sealed cartridge bearings

• Seatpost: Marin alloy, 27.2mm

• Saddle: Marin DSX

• Pedals: Nylon platform

• Available Sizes: Small, Medium, Large and X-Large

Adventure & Riding Performance

• Frame Geometry: 69.5° head angle and 74° seat angle provide a balanced position for mixed-surface riding

• Chainstay Length: 425mm supports stable handling across gravel and uneven terrain

• Tire Clearance: 700x45C tires provide a capable setup for gravel and rougher surfaces

• Fork Design: Full-carbon construction helps keep the front end lightweight and responsive

• Mounting Capability: Rack and mudguard mounts make the bike suitable for commuting and longer adventures

• Dropper Compatibility: The frame supports internal dropper-post routing for compatible upgrades

Easy Operation / Usage

• Gear Selection: Use the Shimano CUES 10-speed drivetrain to select suitable gearing for climbs, flats and descents

• Brake Control: Apply the hydraulic disc brakes progressively for controlled stopping on changing surfaces

• Tire Setup: Maintain tire pressure according to rider weight, terrain and riding conditions

• Adventure Setup: Use the frame mounting points for compatible racks, mudguards and accessories

• Maintenance: Regularly check the drivetrain, brakes, tires, wheels and thru-axles before longer rides

Why Choose This Product

• Versatility: Suitable for gravel, commuting, touring and mixed-surface riding

• Lightweight Front End: Full-carbon fork helps provide a responsive and comfortable ride

• Wide Gearing: 11-48T cassette provides a useful range for climbs and varied terrain

• Tire Performance: 700x45C WTB Riddler tires offer traction while maintaining efficient rolling

• Braking Control: Hydraulic disc brakes provide consistent stopping performance

• Adventure Ready: Rack and mudguard mounts support practical touring and commuting setups

• Durable Frame: Series 3 6061 aluminum provides a strong foundation for everyday riding

• Modern Axles: Front and rear thru-axles provide secure wheel attachment and improved stiffness

In the Box

• Marin DSX 1 complete bicycle

• Marin MiniRiser handlebar

• Marin 3D forged alloy stem

• Marin alloy seatpost

• Marin DSX saddle

• Nylon platform pedals

• Front and rear wheels

• Front and rear thru-axles
