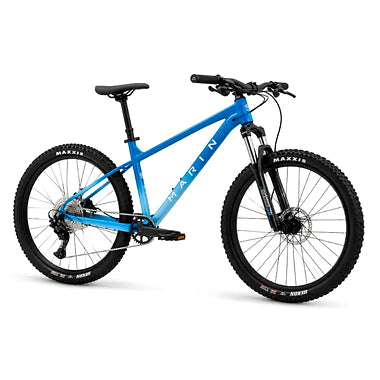

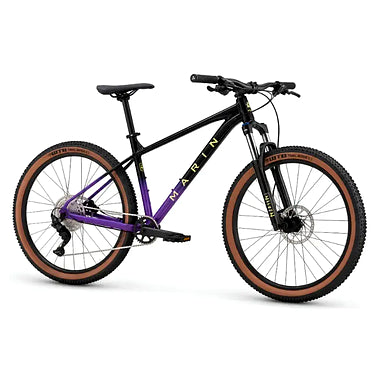

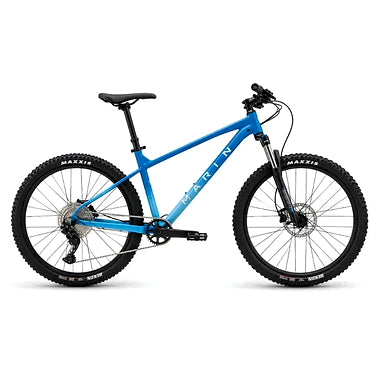

Marin Bobcat Trail 4

The Marin Bobcat Trail 4 is a versatile hardtail mountain bike designed for trail riding, off-road adventures and everyday cycling. It features a Series 2 6061 aluminum frame with a low standover design, internal cable routing and compatibility for an internally routed dropper post. The SR Suntour XCM HLO-DS suspension fork provides 120mm of travel with hydraulic lockout, helping the bike handle uneven and demanding terrain. A Shimano CUES 10-speed drivetrain with an 11-48T cassette offers a wide gearing range for climbing and varied trail conditions. Tektro hydraulic disc brakes with 180mm front and 160mm rear rotors provide controlled braking. Depending on frame size, the Bobcat Trail 4 is available with 27.5-inch or 29-inch wheels, making it suitable for different rider sizes and trail preferences.

Key Features

• Frame: Series 2 6061 aluminum frame with low standover design

• Suspension Fork: SR Suntour XCM HLO-DS with 120mm travel

• Fork Lockout: Hydraulic lockout for improved control on smoother sections

• Drivetrain: Shimano CUES 1x10-speed drivetrain

• Cassette: Shimano CUES 10-speed, 11-48T

• Crankset: Alloy crank with 32T steel narrow-wide chainring

• Brakes: Tektro M280 hydraulic disc brakes

• Front Rotor: 180mm

• Rear Rotor: 160mm

• Tires: Delium Versatile triple-compound, tubeless-compatible 27.5/29x2.4-inch

• Handlebar: Marin 31.8 riser handlebar, 780mm width

• Seatpost: Marin Alloy 30.9mm

• Cable Routing: Internal housing and dropper post routing

Product Specifications

• Bike Type: Hardtail trail mountain bike

• Frame Material: Series 2 6061 aluminum

• Wheel Size: 27.5-inch or 29-inch depending on frame size

• Bottom Bracket: 68mm sealed cartridge bearing, square taper

• Front Suspension: SR Suntour XCM HLO-DS, 120mm travel

• Fork Offset: 46mm

• Rear Dropout: 135mm forged dropout

• Front Hub: Forged alloy, disc, 32H

• Rear Hub: Forged alloy, disc, 32H

• Rims: Marin aluminum double wall, 25mm inner width

• Spokes: 14g black stainless steel

• Rear Derailleur: Shimano CUES U6000GS with clutch

• Shifter: Shimano CUES 10-speed

• Chain: KMC LG

• Cassette: Shimano CUES CSLG300, 10-speed, 11-48T

• Crankset: Alloy crank with 32T narrow-wide chainring

• Front Brake: Tektro M280 hydraulic disc with 180mm rotor

• Rear Brake: Tektro M280 hydraulic disc with 160mm rotor

• Brake Levers: Tektro M280 hydraulic

• Handlebar: Marin 31.8 Riser, 12mm rise, 780mm width

• Stem: Marin Alloy, 31.8mm clamp, 45mm length

• Grips: Marin MTB closed-end grips

• Headset: FSA No.10-P

• Seatpost: Marin Alloy, 30.9mm

• Saddle: Marin MTB

• Pedals: Nylon platform

• Available Sizes: Small, Medium, Large and X-Large

Trail Geometry & Handling

• Geometry: Marin Trail geometry with a slack head tube and steep seat tube angle

• Handling: Designed for stable and predictable control on trails

• Standover: Low standover design for easier rider movement

• Seat Angle: 74.5° across the listed frame sizes

• Head Angle: 66° to 66.5° depending on frame size and wheel configuration

• Dropper Compatibility: Internal routing supports future dropper post installation

• Rack Compatibility: Frame design includes rack mounting provisions for extended riding

Easy Operation / Usage

• Suspension Setup: Adjust the fork according to rider weight and preferred trail conditions

• Lockout: Engage the hydraulic lockout when a firmer fork feel is preferred on smoother surfaces

• Gear Selection: Use the 10-speed drivetrain and wide-range cassette for climbs, flats and descents

• Braking: Apply the hydraulic disc brakes progressively for controlled stopping

• Tire Pressure: Set tire pressure according to rider weight, terrain and riding conditions

• Maintenance: Regularly check drivetrain, brakes, tires and suspension before demanding rides

Why Choose This Product

• Frame: 6061 aluminum construction provides a durable platform for trail riding

• Suspension: 120mm front travel helps absorb bumps and uneven trail surfaces

• Gearing: 11-48T cassette provides a broad range for climbing and varied terrain

• Braking: Hydraulic disc brakes offer controlled braking performance on changing trails

• Wheel Options: 27.5-inch and 29-inch configurations accommodate different frame sizes

• Tires: 2.4-inch tubeless-compatible tires provide a versatile setup for off-road riding

• Control: Trail-focused geometry supports confident handling on technical terrain

• Upgrade Ready: Internal dropper routing gives riders the option to add a compatible dropper post later

In the Box

• Marin Bobcat Trail 4 mountain bike

• Front and rear wheels

• Marin MTB saddle

• Marin alloy seatpost

• Marin handlebar and stem

• Nylon platform pedals

• Standard bike components and hardware
