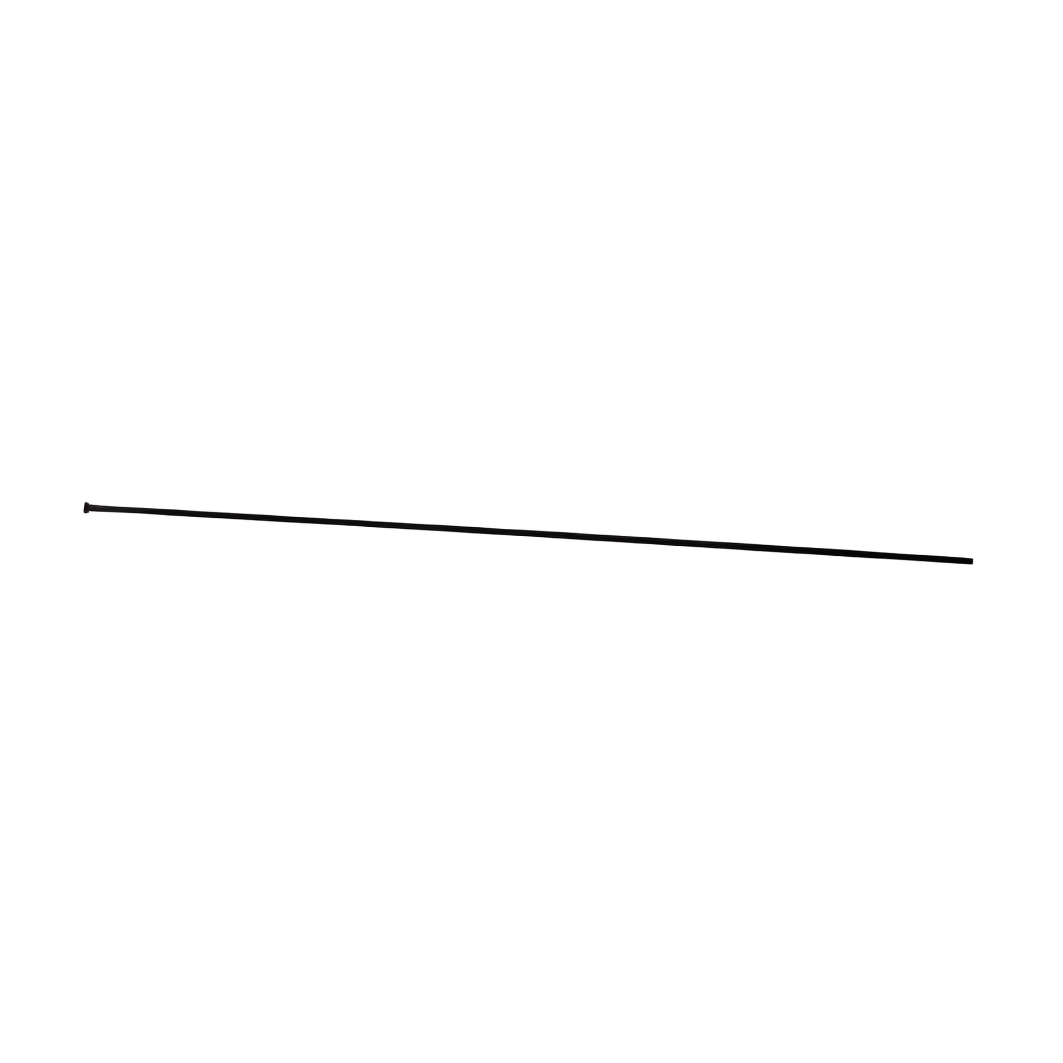

Magene EXAR Carbon Spoke For UltraDark DB405

The Magene EXAR Carbon Spoke for UltraDark DB405 is a dedicated replacement spoke designed specifically for the Magene EXAR UltraDark DB405 carbon wheelset. Made from HI-MOD carbon fiber, this spoke is designed to maintain the lightweight, stiff and responsive characteristics of the original wheel system. Each spoke weighs approximately 2.8 g, helping keep rotational weight low while supporting efficient wheel performance. The spoke is available in four position-specific configurations: Front Drive, Front Non-Drive, Rear Drive and Rear Non-Drive. This ensures the correct spoke can be selected according to its position within the wheel. The DB405 UltraDark wheelset uses a 2:1 spoke lacing arrangement, making correct spoke selection and installation important when replacing a damaged spoke.

Key Features

• Material: HI-MOD Carbon Fiber

• Weight: Approximately 2.8 g per spoke

• Compatibility: Magene EXAR UltraDark DB405 wheelset

• Construction: Full carbon fiber spoke design

• Available Options: Front Drive, Front Non-Drive, Rear Drive and Rear Non-Drive

• Design: Lightweight and performance-oriented carbon spoke

• Lacing System: 2:1 spoke arrangement

• Application: Replacement spoke for EXAR UltraDark DB405 wheels

Product Specifications

• Product Type: Replacement Carbon Spoke

• Spoke Material: HI-MOD Carbon Fiber

• Weight Per Spoke: 2.8 g

• Compatible Wheelset: Magene EXAR UltraDark DB405

• Front Spoke Tension: 110 kgf ±10%

• Rear Drive-Side Tension: 130 kgf ±10%

• Rear Non-Drive-Side Tension: 110 kgf ±10%

• Front Lacing: 21H, 2:1, brake side ×2 and non-brake side radial

• Rear Lacing: 21H, 2:1, drive side ×2 and brake side radial

• Size: Standard

• Country of Origin: China

Carbon Spoke Performance

• Lightweight Design: Weight: At approximately 2.8 g, the spoke helps preserve the lightweight character of the DB405 wheelset.

• High Stiffness: Construction: HI-MOD carbon fiber is designed to provide a stiff and responsive wheel structure.

• Power Transfer: Structure: The carbon spoke design supports efficient transfer of pedaling forces through the wheel.

• Aerodynamic Shape: Profile: The slim, bladed construction is suited to the performance-focused design of the EXAR carbon wheelset.

Easy Operation / Usage

• Replacement: Use this spoke to replace a damaged or broken spoke on a compatible UltraDark DB405 wheelset.

• Selection: Choose the correct Front Drive, Front Non-Drive, Rear Drive or Rear Non-Drive variant before ordering.

• Installation: Have the spoke installed and tensioned by an experienced bicycle wheel mechanic.

• Compatibility: Confirm the wheel model and spoke position before installation.

Why Choose This Product

• Purpose-Built Fit: Compatibility: Specifically designed for the Magene EXAR UltraDark DB405 wheelset.

• Low Weight: Weight: The 2.8 g construction helps minimize additional rotational mass.

• Performance Focus: Material: HI-MOD carbon fiber matches the carbon spoke construction used by the DB405 UltraDark wheelset.

• Multiple Configurations: Options: Four position-specific variants allow accurate replacement for different wheel locations.

• Wheel Maintenance: Application: Helps restore the intended structure and performance of a compatible DB405 wheel after spoke replacement.

In the Box

• 1 × Magene EXAR Carbon Spoke for UltraDark DB405

• Selected spoke variant
