Geoid Cs600 Speed Cadence sensor

The GEOID CS600 Speed Cadence Sensor is a compact and versatile cycling sensor designed to provide accurate speed and cadence data during your rides. Its dual-mode design allows a single sensor to work in either speed or cadence mode, while two sensors can be used together for simultaneous speed and cadence recording. With ANT+ and Bluetooth connectivity, it can communicate with compatible cycling computers, sports devices, and other supported receivers. The sensor offers a cadence range of 30–180 RPM and speed measurement from 5–85 km/h, making it suitable for everyday cycling, training, and performance tracking. Its IP66-rated construction provides protection against dust and water exposure, while the lightweight 8.8g body adds minimal weight to your bicycle setup.

Key Features

• Dual Mode: Switch between speed and cadence sensing using the battery installation method.

• Wireless Protocol: Supports ANT+ and Bluetooth connectivity.

• Speed Range: Measures cycling speeds from 5–85 km/h.

• Cadence Range: Tracks cadence from 30–180 RPM.

• Battery Life: Provides up to 300 hours of operating time.

• Water Resistance: IP66-rated construction helps protect against dust and water.

• Lightweight Design: Weighs only 8.8g for minimal impact on the bike.

• Temperature Range: Designed to operate from -10°C to 50°C.

• Flexible Setup: One sensor can be used for speed or cadence, while two sensors support simultaneous recording.

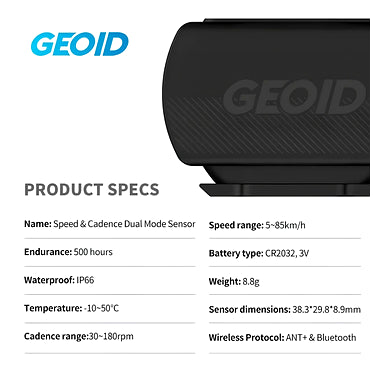

Product Specifications

• Brand: GEOID

• Model: CS600

• Product Type: Speed and Cadence Dual Mode Sensor

• Sensor Mode: Speed or Cadence

• Wireless Protocol: ANT+ and Bluetooth

• Speed Range: 5–85 km/h

• Cadence Range: 30–180 RPM

• Battery Type: CR2032

• Battery Life: Up to 300 hours

• Waterproof Rating: IP66

• Operating Temperature: -10°C to 50°C

• Weight: 8.8g

• Sensor Dimensions: 38.3 × 29.8 × 8.9mm

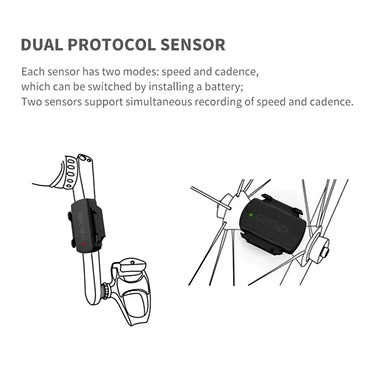

Dual-Mode Tracking & Connectivity

• Speed Mode: Mount the sensor to the wheel area to record cycling speed through compatible ANT+ or Bluetooth devices.

• Cadence Mode: Mount the sensor to the crank area to monitor pedaling cadence.

• Dual Sensor Setup: Use two sensors together to record speed and cadence at the same time.

• Wireless Data: Sends cycling data without the need for wired connections.

• Device Compatibility: Works with compatible ANT+ and Bluetooth cycling computers and devices.

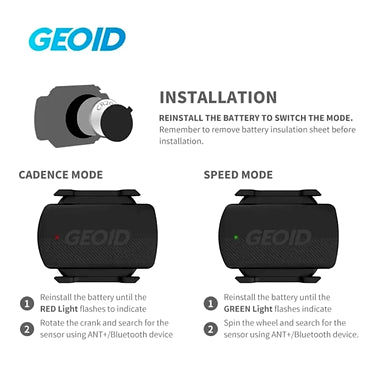

Easy Operation / Usage

• Mode Selection: Reinstall the CR2032 battery to switch between speed and cadence modes.

• Speed Setup: Install the sensor according to the speed-mode position and rotate the wheel to activate detection.

• Cadence Setup: Install the sensor in the cadence position and rotate the crank to begin detection.

• Pairing: Search for the sensor using a compatible ANT+ or Bluetooth device.

• Battery: Remove the battery insulation sheet before first installation and replace the CR2032 battery when required.

Why Choose This Product

• Accurate Data: Provides useful speed and cadence information for cycling analysis.

• Dual Function: Can be configured as either a speed or cadence sensor.

• Wireless Connectivity: ANT+ and Bluetooth support offers flexible device pairing.

• Long Runtime: Up to 300 hours of battery life reduces frequent battery changes.

• Lightweight Build: The 8.8g design keeps your cycling setup compact.

• Weather Protection: IP66 protection makes it suitable for regular outdoor riding.

• Training Support: Helps cyclists monitor pedaling and speed data during workouts and daily rides.

In the Box

• 1 × GEOID CS600 Speed Cadence Sensor

• CR2032 Battery

• Mounting Accessories
