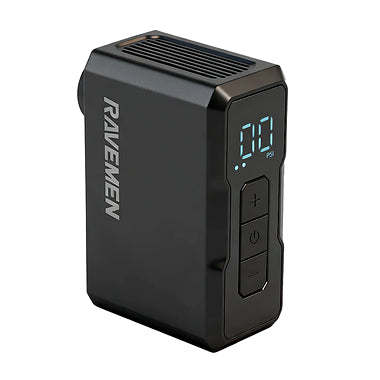

EP01 Electric Mini Bike Pump

The RAVEMEN EP01 Electric Mini Bike Pump is a compact and powerful portable inflator designed to make bicycle tire inflation faster and easier. Its pocket-friendly 128g body is ideal for carrying during road rides, training sessions, commuting, and long-distance cycling. The pump delivers up to 120 PSI inflation pressure and features a clear digital display for accurate pressure monitoring. Its automatic shutoff helps stop inflation when the selected pressure is reached, while the pressure sensor provides accuracy of approximately ±1 PSI. Powered by dual 500mAh batteries, the EP01 can quickly inflate road bike tires and is suitable for Presta, Schrader, and ball needle valves with the appropriate adapters. USB-C charging makes recharging convenient, while the built-in three-level battery indicator helps you monitor remaining power before and during your ride.

Key Features

• Maximum Pressure: Up to 120 PSI for high-pressure bicycle tire inflation

• Pressure Accuracy: Approximately ±1 PSI for precise inflation control

• Display: Digital LED display for clear pressure monitoring

• Auto Shutoff: Automatically stops inflation when the selected pressure is reached

• Battery: Dual 500mAh rechargeable batteries

• Charging: USB Type-C charging with charging time of less than 1 hour

• Valve Compatibility: Supports Presta, Schrader, and ball needle valves with suitable adapters

• Weight: Approximately 128g for easy carrying

• Power Indicator: Three-level battery indicator shows remaining power

• Inflation Performance: Can inflate a 700C road tire to 100 PSI in approximately 70 seconds

Product Specifications

• Product Type: Electric mini bicycle pump

• Brand: RAVEMEN

• Model: EP01

• Maximum Inflation Pressure: 120 PSI

• Pressure Measurement Range: 3–150 PSI

• Battery Capacity: 2 × 500mAh

• Maximum Inflation Power: 70W

• Charging Port: USB Type-C

• Charging Time: Less than 1 hour

• Hose Length: 100mm

• Dimensions: 72 × 53.7 × 30mm

• Weight: Approximately 128g

• Noise Level: Approximately 80 dB at 1 meter

• Sensor Accuracy: ±1 PSI

• Display Size: 16.25 × 14mm

Inflation Performance & Pressure Control

• Road Tire Inflation: Performance: 700C23 road tires can reach 100 PSI in approximately 70 seconds under specified conditions

• Pressure Range: Inflation Range: Supports pressure settings from 3 to 120 PSI

• Smart Pressure Control: Accuracy: Pressure sensing accuracy of approximately ±1 PSI helps provide more consistent inflation

• Unit Selection: Pressure Units: Easily switch between PSI and BAR before inflation

• Automatic Stop: Safety Control: The pump stops automatically when the preset pressure is reached

Easy Operation / Usage

• Power On: Press and hold the power button for approximately 2 seconds to turn on the pump

• Pressure Setting: Use the plus and minus buttons to select the desired tire pressure

• Unit Selection: Press and hold the plus and minus buttons together for approximately 1.5 seconds to switch between PSI and BAR

• Valve Connection: Connect the appropriate nozzle or adapter to the bicycle valve and begin inflation

• Automatic Inflation: Start the pump and allow it to inflate until the selected pressure is reached

• Power Off: Press and hold the power button to switch the pump off, or allow the automatic shutdown function to activate

Why Choose This Product

• Portable Design: Compact 128g construction makes it easy to carry in a cycling bag or pocket

• High Pressure: 120 PSI maximum pressure is suitable for road and other bicycle tires

• Accurate Inflation: ±1 PSI sensor accuracy supports precise tire pressure management

• Fast Inflation: Designed to inflate road bike tires quickly during rides or at home

• Multiple Valve Support: Compatible with Presta, Schrader, and ball needle valves using the appropriate connection method

• USB-C Charging: Convenient charging interface makes battery replenishment simple

• Smart Operation: Digital pressure display and automatic shutoff make inflation easier to control

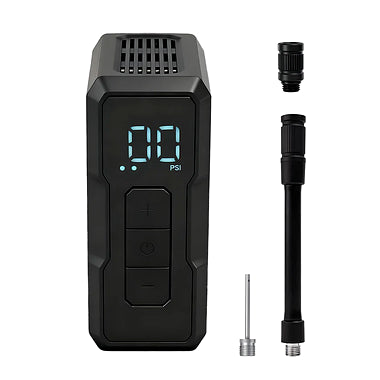

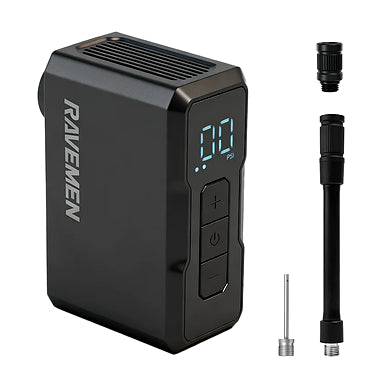

In the Box

• 1 × RAVEMEN EP01 Electric Mini Bike Pump

• 1 × High-Pressure Extension Hose

• 1 × Presta Valve Adapter

• 1 × Ball Needle Adapter

• 1 × USB-C Charging Cable

• 1 × User Manual/Warranty Card
