Rs. 179,900.00
inclusive of all taxes
My Store
PRODUCT DETAILS ▼

Frame Specs:

  • Carbon: Toray® T700, T800 & 3K Directional Carbon
  • Frame 5 Sizes: XS, S, M, L & XL
  • Fork 2 Sizes: XS, S, M (55mm offset) and L, XL (50mm offset)
  • Frame Weight: 1180 Size M +/- 3%
  • Fork: 479g Uncut +/- 3%
  • Seatpost: 249g +/- 3%
  • Stem: 80mm, 90mm, 100mm, 110mm and 120mm (+/-7°)
  • Headset: CHAPTER2 Tapered 1-1/8” – 1.5”
  • BB: BSA Threaded English
  • Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
  • Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
  • Tire Clearance: 42mm (700c) & 47mm (650B)
  • Brake Type: Disc Only
  • Disc Thru-Axle Spec: Flat Mount FR 12x100mm, RR 12x142mm,E-Thru M12x1.5mm
  • Safety Standard: EN ISO 4210:2014
DESCRIPTION ▼

About the Frame:

Adventure! We all love it, we all seek it, but having the right tool for the job means that adventure can mean different things to different people. The AO is the Swiss Army knife of the Gravel genre. AO means “Earth” in Maori and New Zealand’s rugged landscape became the brief in developing one of the most versatile Gravel frames in the market.

Each year hundreds of adventurers embark on the Tour of Aotearoa, a 3,000km race from the tip of the North Island to the southernmost part of the South Island. Along the way, competitors will traverse some of the most spectacular and rough roads and terrains.

The AO has been specially designed to excel in all the variable conditions. With 42mm tire clearance with 700C wheels and the ability to accept 650B wheels at 47mm tire clearance, the AO can be fitted with 5 water bottles, dropper post, panniers, and mudguards making it an adventurer’s perfect multi-tool.

Whether you are racing fast gravel events or long distance brevets the AO’s ability to adjust its rear centre by up to 15mm will let you adjust its agility levels to suit your every need and desire, including running road tires for that one bike does it all quiver killer.

Model Benefits:

  • Versatility: Designed for Gravel Racing & Adventure Riding
  • Adjustable Rear Centre: Adjustable Steering Agility
  • Tire Clearance: Up to 42mm (700C) & 47mm (650B) Tire Clearance
  • Wheel Options: Compatible with 700C & 650B Wheels
  • Pannier & Mudguard Mounts: Tackle All Conditions & Travel Requirements
  • 5-Bottle Cage Mounts: For Carrying Extra Bottles & other Accessories
  • 31.6mm Seatpost Size: Industry Standard for Optional Dropper Post
  • Bento Box Mount on Top Tube: Extra Storage Space
  • 1X Option: Compatible with 1X Set-Up
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity
SPECIFICATIONS ▼

Torque Specs:

  • Saddle Rail: 6-8Nm
  • Integrated Seatclamp: 5-6Nm
  • Stem (Steerer): 6Nm
  • Stem (Handlebar): 6Nm
  • Rear Derailleur Hanger: 2Nm
  • BB Cable Guide Cover: 1Nm
  • Water Bottle Cage Bolts: 3Nm

Chapter2 AO Gravel Disc Brake Frameset – Silver Matt

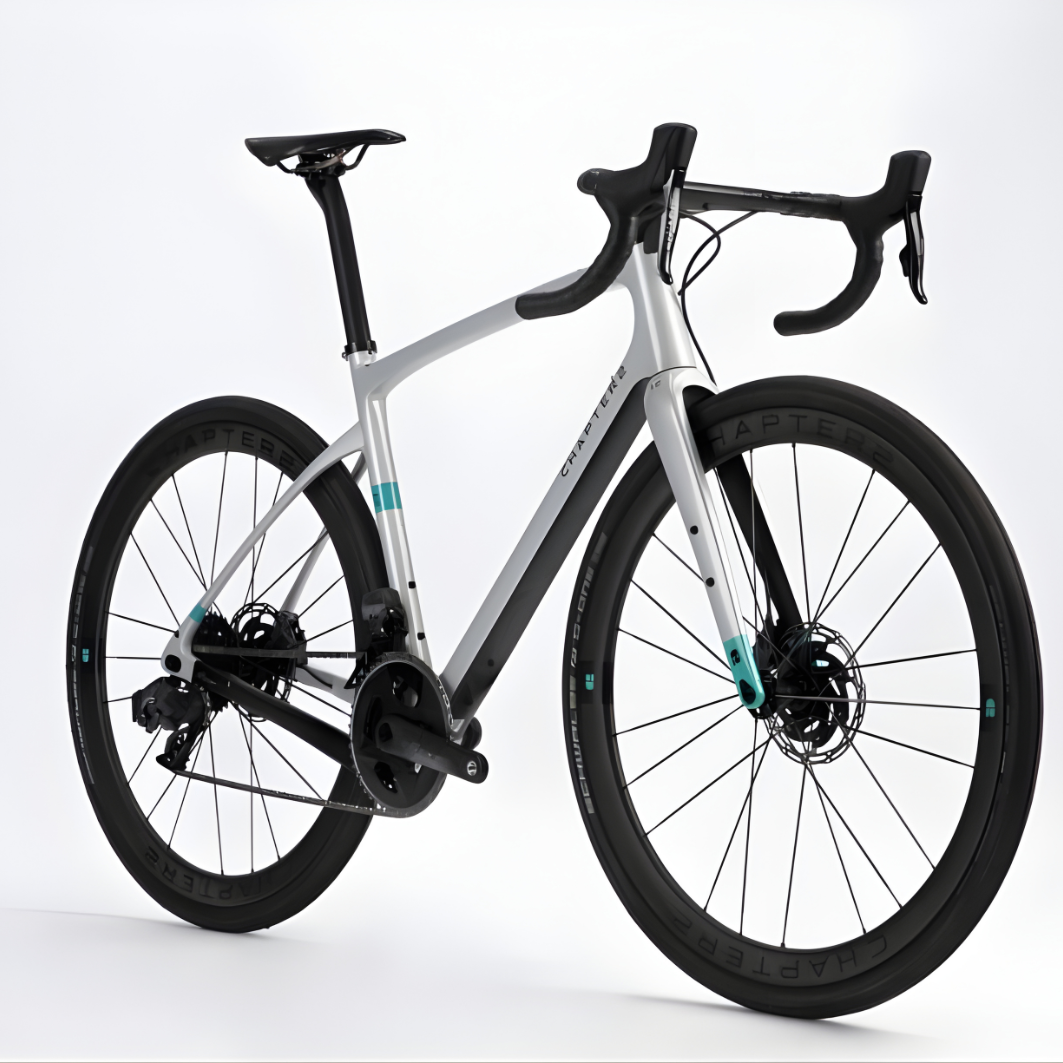

The Chapter2 AO Gravel Disc Brake Frameset – Silver Matt is a premium high-performance gravel bike frame designed for adventure riding, endurance cycling, and gravel racing. Inspired by New Zealand’s rugged landscapes, the AO (meaning “Earth” in Maori) is built to handle rough terrain, long-distance rides, and unpredictable road conditions. This lightweight carbon gravel frameset is crafted using Toray® T700, T800, and 3K directional carbon, offering the perfect balance of strength, durability, and aerodynamic efficiency.

Designed for versatility, the AO supports 700C wheels with 42mm tire clearance and 650B wheels with up to 47mm clearance, making it ideal for both fast gravel races and bikepacking adventures. The frame also includes five bottle cage mounts, pannier and mudguard mounts, and a top-tube Bento box mount, providing extra storage for long-distance cycling trips. Its adjustable rear centre (up to 15mm) allows riders to fine-tune steering agility and stability depending on riding conditions.

Compatible with Shimano Di2, SRAM eTap, and Campagnolo EPS electronic shifting systems, the AO frameset delivers advanced performance and customization options for serious cyclists. With a disc brake setup, tapered headset, and BSA threaded bottom bracket, it ensures reliable braking, stability, and smooth power transfer on every ride.

Perfect for riders who want one bike for gravel racing, endurance rides, bikepacking, and road adventures, the Chapter2 AO Gravel Frameset combines innovation, durability, and premium design for the ultimate cycling experience.
