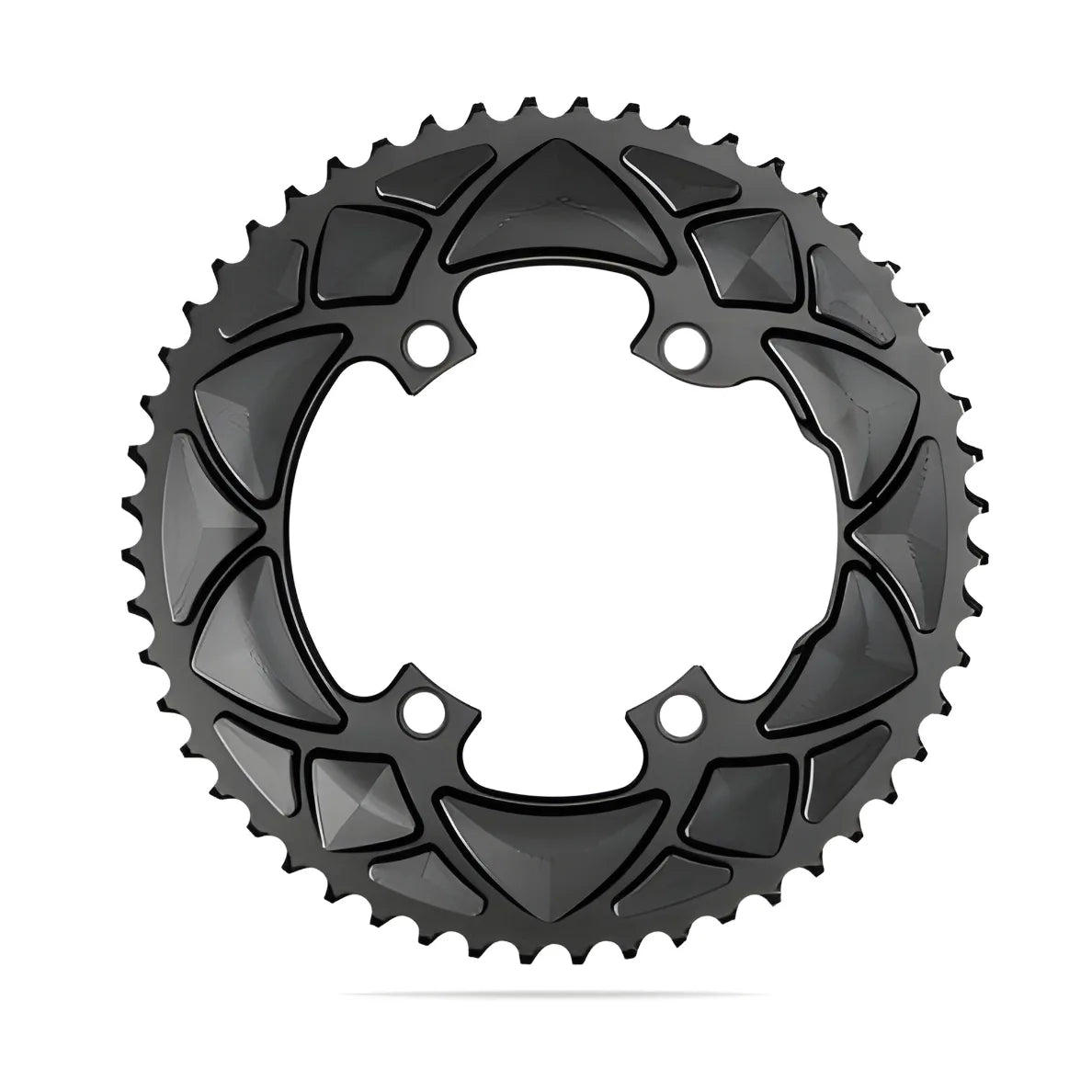

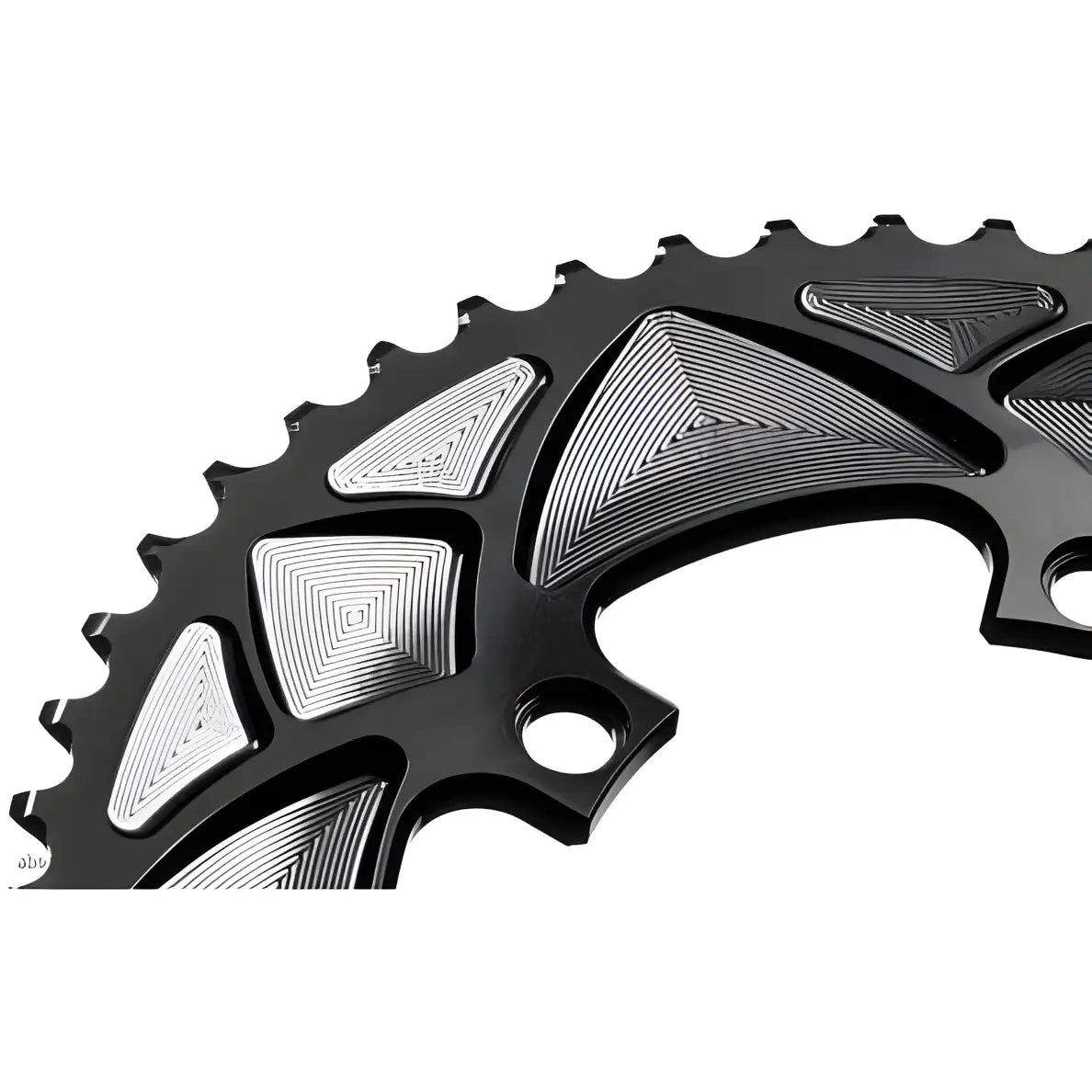

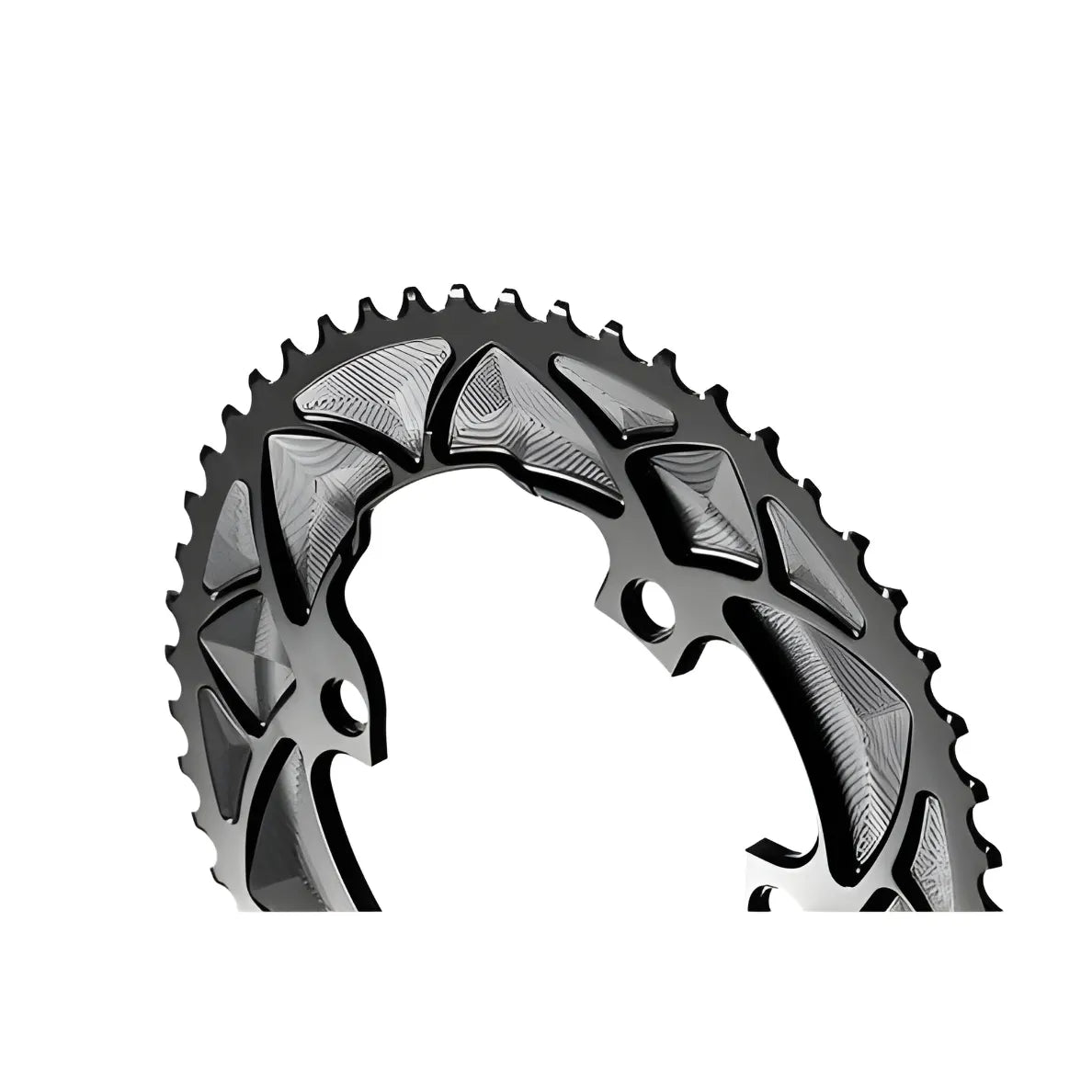

Absolute Black Round Road Chainring 2X 110/4 Shimano 9100/8000 (50T/52T/53T)-Black

absoluteBLACK Premium Shimano 110/4 BCD compatible ROUND chainrings are designed for new and old type of Shimano cranks like Dura-Ace 9100, 9000, Ultegra 8000, 6800 & 105 R7000 and more. These are finest round aftermarket chainrings in terms of shifting, stiffness and manufacturing quality. 10/11spd compatible. Made in EU

Important:

• Ramps on big rings are specially configured for combinations: 50/34, 52/36, 52/38, 53/39T
• If you wish to use other configuration it will also work, but shifting will be slower and may require more "adjustments" of front dérailleur to be acceptable. Also remember that front dérailleur can only accept max 16T difference between 2 chainrings - this is how Shimano and Sram designed them.
• Absolute Black always recommends using a new chain when fitting new chainrings.

Advantages of Absolute Black Road Round Chainrings:

• One of a kind look
• Super stiff design due to thicker, 5mm construction
• Bespoke Absolute Black 4 / 6 point ramp and recess shifting design shifts as crisp as original
• Finest design that provides excellent strength to weight ratio

How to mount 110/4 Absolute Black Round Chainrings:

First, you need to remove your crank from your bike. Once removed, unscrew the 4 bolts that hold two chainrings together with a T-30 torx key. Remove both original rings. Locate the new inner chainring with the triangular timing indicator positioned behind crank arm. The bolt holes on the small chainring are recessed – so the nut heads will sit flush with the surface of the chainring - these recesses should face you when mounting the bolts. Absolute Black outer chainring has a specific shape of mounting tabs so it will only fit one way on the new version of cranks arms (for older cranks locate the recess on the chainring behind the crank arm).

If you are only changing the inner chainring - use the original bolts that came with your crank. If you are replacing a pair of rings, you will need a set of regular ‘double’ chainring bolts or our set of Bolt covers (buy bolt covers that are right for your crank model). Tighten all four bolts with force of about 5-7Nm. Mount your crank back to the bike. If you were changing outer ring size - you need to also adjust front dérailleur.

Key Features

• Compatibility: Shimano Dura-Ace 9100 / 9000, Ultegra 8000 / 6800, 105 R7000 cranksets

• BCD Standard: 110/4 bolt circle diameter

• Chainring Type: 2X round road chainring

• Speed Compatibility: 10 and 11-speed drivetrains

• Tooth Options: 50T, 52T, 53T outer chainrings

• Construction Thickness: 5mm for superior stiffness and durability

• Shifting System: Absolute Black bespoke 4/6 ramp and recess design

• Design: Premium CNC-machined chainring with distinctive styling

• Manufacturing: Precision engineered and made in the EU

• Performance: Crisp front shifting with excellent power transfer

Product Specifications

• Product Type: Road bike chainring

• Brand: absoluteBLACK

• Material: High-grade CNC machined aluminum

• Chainring Shape: Round

• Bolt Pattern: 110mm BCD 4-bolt

• Compatibility: Shimano road cranksets

• Speed Support: 10 / 11 speed systems

• Available Sizes: 50T / 52T / 53T

• Color: Black

• Manufacturing Location: EU

Shifting Performance & Ramp Technology

Absolute Black chainrings use a specially engineered ramp and recess system to deliver fast and consistent shifting. The ramps on the large chainrings are optimized for specific combinations to maintain smooth gear changes and drivetrain efficiency.

• Optimized Combinations: 50/34T, 52/36T, 52/38T, 53/39T

• Maximum Difference: Front derailleur supports up to 16T difference between chainrings

• Precision Ramps: Custom 4 and 6 point ramp design for crisp shifting

• Consistent Engagement: Smooth chain pickup during front shifting

• Stable Performance: Maintains drivetrain efficiency under high pedaling loads

Easy Operation / Usage

• Remove the crankset from the bicycle before installation

• Use a T-30 Torx key to remove the four chainring bolts

• Remove the original chainrings from the crankset

• Position the new inner chainring with the triangular timing indicator behind the crank arm

• Ensure recessed bolt holes face outward so bolt heads sit flush

• Align the outer chainring mounting tabs correctly with the crank arm

• Tighten all bolts to approximately 5–7 Nm torque

• Reinstall the crankset on the bike

• Adjust the front derailleur if changing outer chainring size

Why Choose This Product

• Premium aftermarket chainring designed for Shimano road cranksets

• Superior stiffness thanks to thick 5mm construction

• Crisp and reliable front shifting performance

• Unique and stylish design that stands out on any road bike

• Excellent strength-to-weight ratio for efficient power transfer

• Precision CNC machining ensures long-term durability

• Engineered and manufactured in the EU for top quality

In the Box

• Absolute Black Round Road Chainring (selected size)
