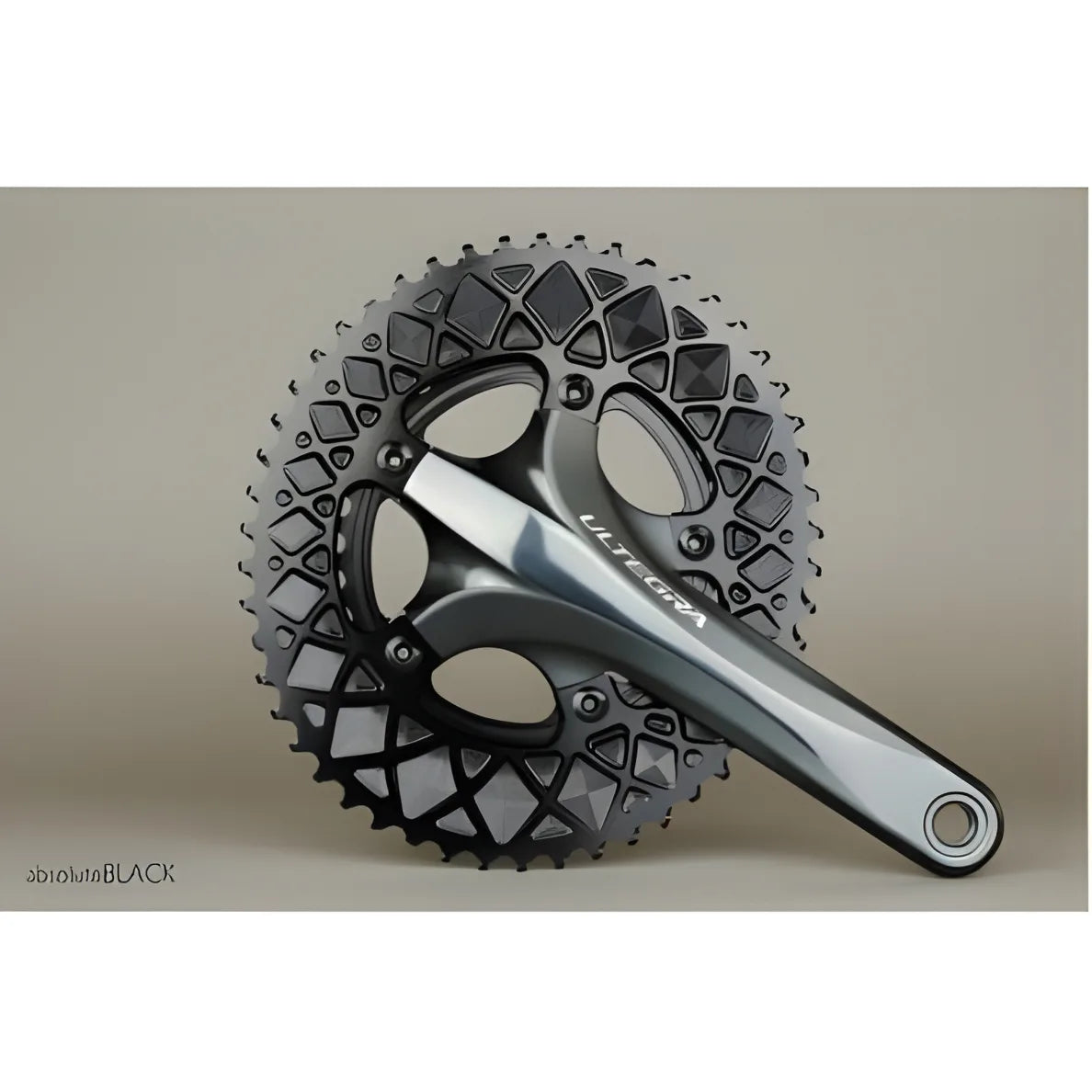

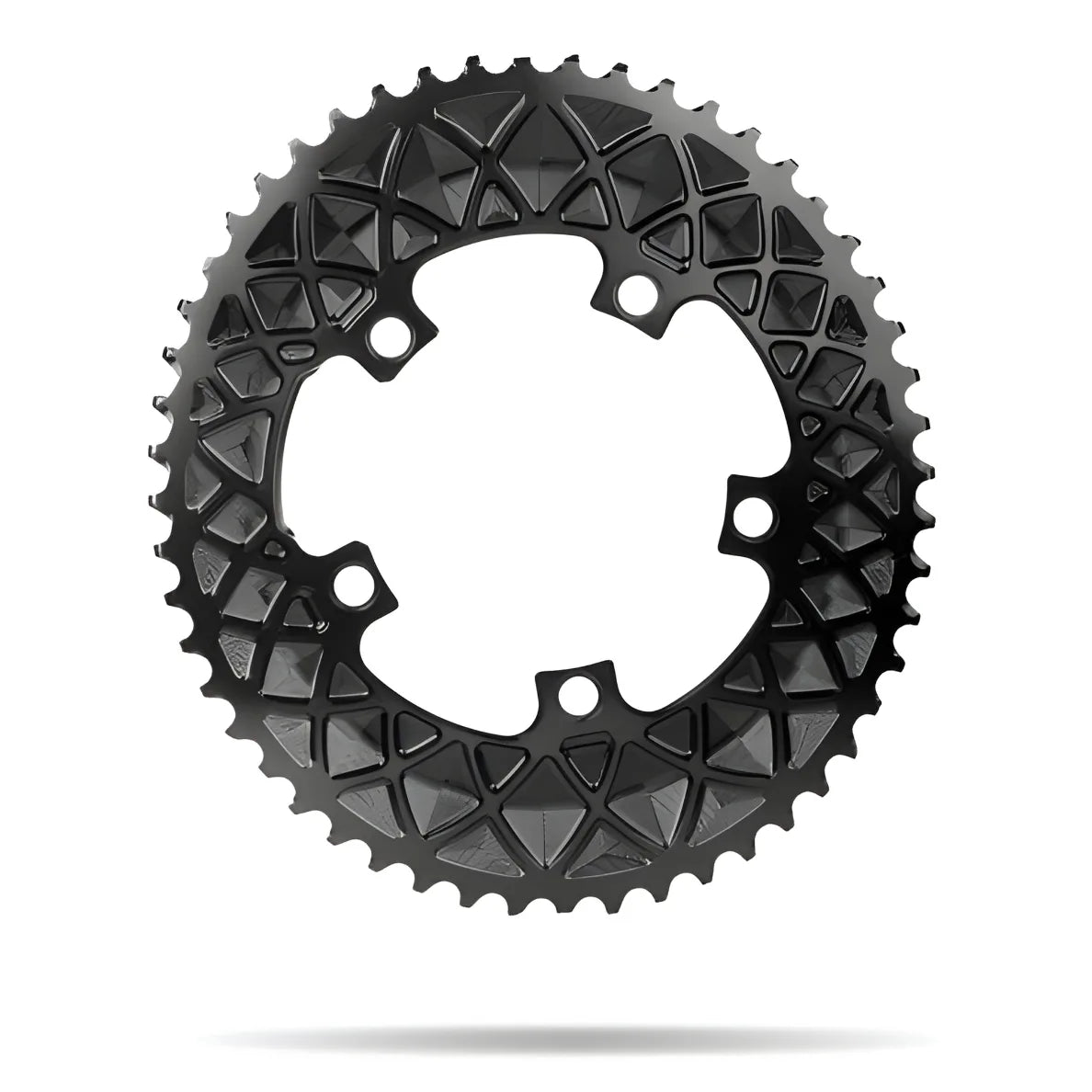

Absolute Black Oval Road Chainring 2X 110/5 (50T/52T) (Not For SRAM)-Black

Our Premium Shimano 110/5 (bolt pattern) oval chainrings are designed for pre 2014 cranks like Shimano Dura-Ace FC7950, Ultegra FC6750, Shimano 105-5750 and many more with 5 bolt fitting. These are finest shift-able oval chainrings on the market.

Advantages of absoluteBlack Road Oval Chainrings:

• One of a kind special oval shape that helps you climb easier and faster (Patent Pending)
• Over 15% stiffer than Rotor Qrings due to thicker, 5mm construction

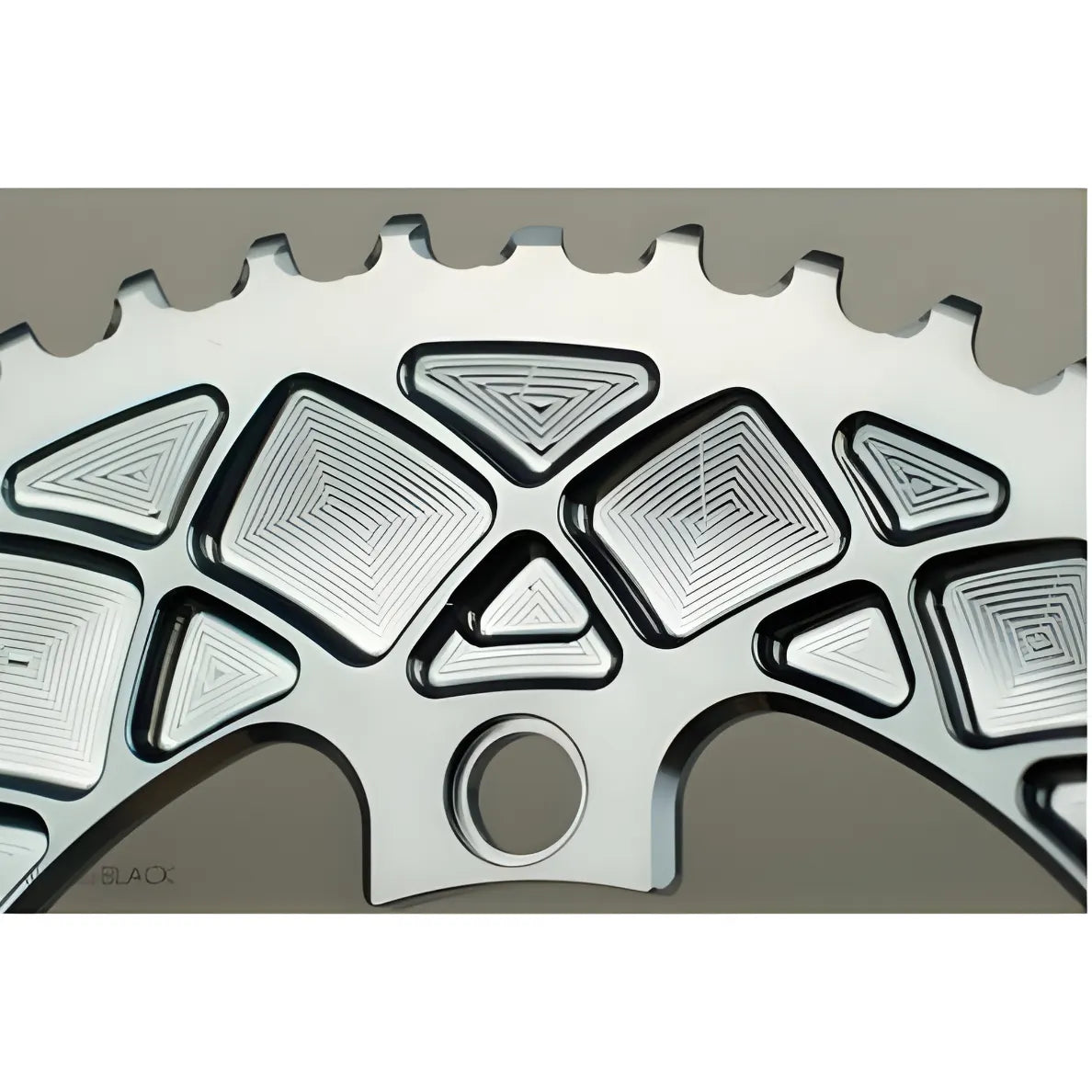

• Bespoke Absolute Black 6 point ramp and recess shifting design shifts better than any other brand and model of oval chainring
• Finest design that provides excellent strength to weight ratio
• You will not "feel" the oval shape while pedaling
• Your pedalling action will feel smoother
• Helps reduce stress on knees and helping your legs remain fresher for longer
• You will be able to maintain better cadence while climbing
• Reduces possibility of leg cramps
• You will reduce chainring/cog shifts by at least 15%

How to mount 110/5 Oval Chainring:

First, you need to remove your crank from your bike. Once removed, unscrew the 5 bolts that hold two chainrings together with a T-30 torx key. Remove both original rings. Locate the new oval inner chainring with the triangular timing indicator positioned behind crank arm. The bolt holes on the small chainring are recessed – so the nut heads will sit flush with the surface of the chainring - these recesses should face you when mounting the bolts. Absolute Black outer chainrings have a specific recess to accommodate the rear edge of the crank arm - position the outer ring to line up that recess with the crank arm. If you are only switching the inner chainring to oval - use the original bolts that came with your crank. If you are switching to a pair of oval rings, you will need a set of regular ‘double’ chainring bolts. Tighten all four bolts with force of about 5-7Nm. Mount your crank back to the bike. You may also need to adjust the front derailleur upwards by 2-3mm.

Key Features

• Oval Design: Special patented oval shape improves pedaling efficiency and helps riders climb easier and faster

• High Stiffness Construction: Over 15% stiffer than Rotor Qrings thanks to a strong 5mm thick design

• Precision Shifting: Custom Absolute Black 6-point ramp and recess shifting system ensures smooth front shifting

• Smooth Pedal Feel: Riders do not feel the oval shape during pedaling, ensuring natural riding performance

• Improved Cadence: Helps maintain a more consistent cadence while climbing or accelerating

• Knee Friendly Performance: Reduces stress on knees and improves pedaling comfort during long rides

• Reduced Fatigue: Keeps legs fresher for longer rides and helps reduce the possibility of leg cramps

• Efficient Gear Usage: Reduces chainring and cog shifts by approximately 15%

• High Strength-to-Weight Ratio: Optimized design delivers excellent durability without unnecessary weight

Product Specifications

• Brand: Absolute Black

• Product Type: Road Oval Chainring Set

• Compatibility: Pre-2014 Shimano 110/5 Bolt Pattern Cranksets

• Compatible Models: Shimano Dura-Ace FC7950, Ultegra FC6750, Shimano 105-5750 and similar

• Chainring Sizes: 50T / 52T

• Bolt Pattern: 110 BCD, 5-Bolt

• Material Thickness: 5mm

• Color: Black

• Design: Oval Chainring for Road Bikes

• Compatibility Note: Not compatible with SRAM cranksets

Performance Benefits of Oval Chainrings

Oval chainrings improve the efficiency of the pedaling cycle by adjusting resistance throughout the pedal stroke. This allows riders to produce power more effectively during the strongest part of the stroke while reducing resistance during weaker phases.

• Smoother Power Delivery: Optimizes force distribution during pedaling

• Improved Climbing Efficiency: Helps riders maintain momentum on steep climbs

• Better Pedal Stroke Efficiency: Reduces dead spots in the pedaling cycle

• Enhanced Rider Endurance: Lower muscle fatigue during long rides

• Reduced Knee Strain: Supports a more natural and comfortable pedaling motion

Easy Operation / Usage

Installing the Absolute Black Oval Chainring is straightforward with the correct tools.

• Remove the crank from the bike

• Unscrew the 5 chainring bolts using a T-30 Torx key

• Remove the original chainrings from the crank

• Position the inner oval chainring with the triangular timing indicator behind the crank arm

• Ensure the recessed bolt holes on the inner chainring face outward so the nuts sit flush

• Align the recess on the outer chainring with the rear edge of the crank arm

• Tighten the bolts with approximately Torque: 5–7 Nm

• Reinstall the crank on the bike

• Adjust the front derailleur upward by approximately Adjustment: 2–3 mm if necessary

Why Choose This Product

• Premium engineered oval chainrings designed for serious road cyclists

• Superior stiffness compared to many competing oval chainrings

• Advanced shifting ramp design for smoother gear transitions

• Helps reduce fatigue and improve endurance on long rides

• Improves pedaling efficiency without changing natural riding feel

• Trusted performance upgrade for Shimano road cranksets

In the Box

• Absolute Black Oval Road Chainring 2X 110/5 (50T/52T)
